Diffraction project datasets TM0015_2raa
- Method: MAD
- Resolution: 2.12 Å
- Space group: P 41 21 2
PDB website for 2RAA
PDB validation report for 2RAA
doi:10.18430/M32RAA
Project details

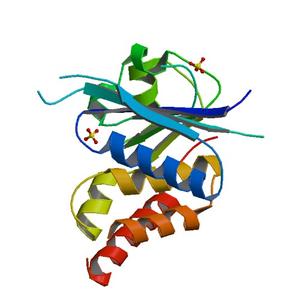

| Title | Crystal structure of pyruvate oxidoreductase subunit PORC (EC 1.2.7.1) (TM0015) from Thermotoga maritima at 2.12 A resolution |
| Authors | Joint Center for Structural Genomics (JCSG) |
| Bioentity | None |
| R / Rfree | 0.22 / 0.25 |
| Unit cell edges [Å] | 57.25 x 57.25 x 147.15 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

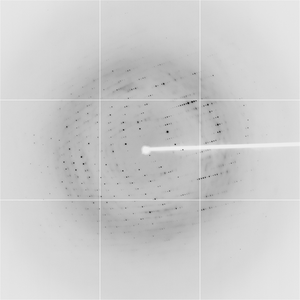

Dataset 58689_1_###.img details
| Number of frames | 90 (1 - 90) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 31.0 |
| Wavelength [Å] | 1.00000 |
| Experiment Date | 2007-08-30 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |

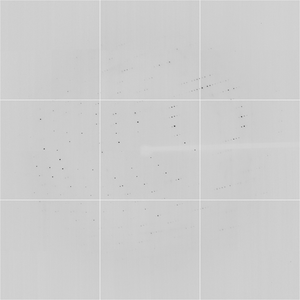

Dataset 58689_2_###.img details
| Number of frames | 45 (1 - 45) |
| Distance [mm] | 400.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 31.0 |
| Wavelength [Å] | 1.00000 |
| Experiment Date | 2007-08-30 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |
