Diffraction project datasets TB1554C_4obi

  • Method: Molecular Replacement
  • Resolution: 1.73 Å
  • Space group: P 21 21 21
Download all images (2.4 GB)

PDB website for 4OBI

doi:10.18430/M34OBI

Project details

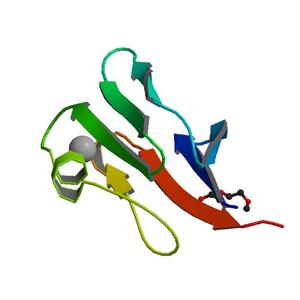

Title Crystal structure of a DUF1312 family protein (EF3258) from Enterococcus faecalis V583 at 1.73 A resolution
Authors JOINT CENTER FOR STRUCTURAL GENOMICS (JCSG)
R / Rfree 0.17 / 0.20
Unit cell edges [Å] 27.26 x 49.16 x 71.78
Unit cell angles [°] 90.0, 90.0, 90.0

Dataset 200198_1_E1_#####.cbf details

Number of frames 220 (1 - 220)
Distance [mm] 350.0
Oscillation width [°] 0.50
Phi [°] 100.0
Wavelength [Å] 0.97949
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

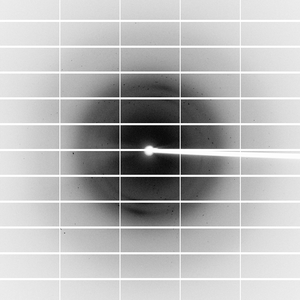

Dataset 200198_1_E2_#####.cbf details

Number of frames 220 (1 - 220)
Distance [mm] 350.0
Oscillation width [°] 0.50
Phi [°] 100.0
Wavelength [Å] 0.91837
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

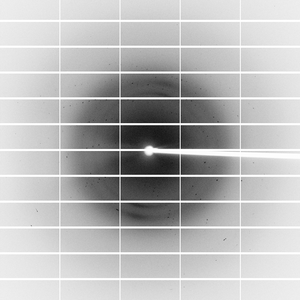

Dataset 200198_2_#####.cbf details

Number of frames 220 (1 - 220)
Distance [mm] 350.0
Oscillation width [°] 0.50
Phi [°] 100.0
Wavelength [Å] 0.97901
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
