Diffraction project datasets StmaA_17905_a_B1_6xep

  • Resolution: 1.8 Å
  • Space group: P 21 21 2
Download all images (1.8 GB)

PDB website for 6XEP
PDB validation report for 6XEP

doi:10.18430/m36xep

Project details

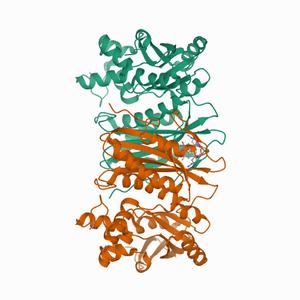

Title Crystal structure of Thiamine-monophosphate kinase from Stenotrophomonas maltophilia K279a
Authors Seattle Structural Genomics Center for Infectious Disease (SSGCID)
R / Rfree 0.17 / 0.20
Unit cell edges [Å] 80.44 x 88.81 x 44.27
Unit cell angles [°] 90.0, 90.0, 90.0

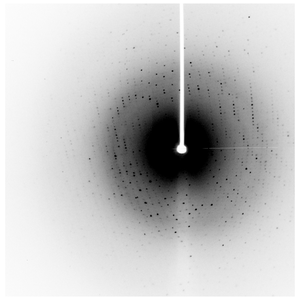

Dataset 315043h10_x2_####.img details

Number of frames 360 (1 - 360)
Distance [mm] 50.0
Oscillation width [°] 0.50
Omega [°] -100.0
Phi [°] 180.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)

Dataset 315043h10_x_####.img details

Number of frames 360 (1 - 360)
Distance [mm] 50.0
Oscillation width [°] 0.50
Omega [°] -100.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)

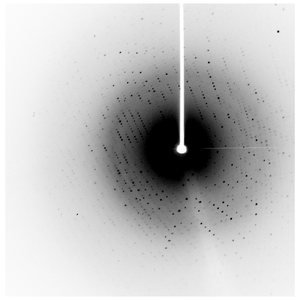

Dataset 315043h10_y2_####.img details

Number of frames 360 (1 - 360)
Distance [mm] 50.0
Oscillation width [°] 0.50
Omega [°] -100.0
Kappa / Chi [°] 15.0
Phi [°] 180.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)

Dataset 315043h10_y_####.img details

Number of frames 360 (1 - 360)
Distance [mm] 50.0
Oscillation width [°] 0.50
Omega [°] -100.0
Kappa / Chi [°] 15.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)
