Diffraction project datasets StmaA_00980_a_B1_6xdk

  • Resolution: 1.6 Å
  • Space group: P 1
Download all images (3.0 GB)

PDB website for 6XDK
PDB validation report for 6XDK

doi:10.18430/m36xdk

Project details

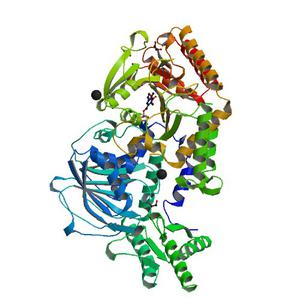

Title Crystal structure of Phosphoserine aminotransferase (SerC) from Stenotrophomonas maltophilia K279a
Authors Seattle Structural Genomics Center for Infectious Disease (SSGCID)
R / Rfree 0.16 / 0.18
Unit cell edges [Å] 64.35 x 71.62 x 89.86
Unit cell angles [°] 85.0, 88.8, 63.4

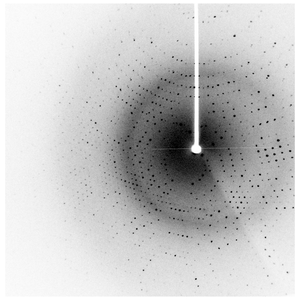

Dataset 314406a2_aa2_####.img details

Number of frames 360 (1 - 360)
Distance [mm] 50.0
Oscillation width [°] 0.50
Omega [°] -105.0
Kappa / Chi [°] 30.0
Phi [°] 180.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)

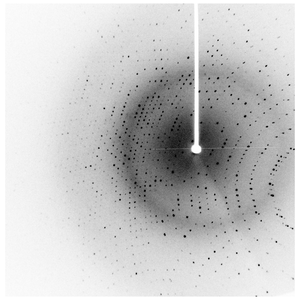

Dataset 314406a2_aa_####.img details

Number of frames 360 (1 - 360)
Distance [mm] 50.0
Oscillation width [°] 0.50
Omega [°] -105.0
Kappa / Chi [°] 30.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)

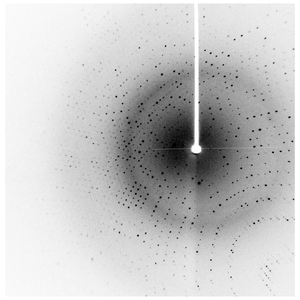

Dataset 314406a2_x_####.img details

Number of frames 720 (1 - 720)
Distance [mm] 50.0
Oscillation width [°] 0.50
Omega [°] -105.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)

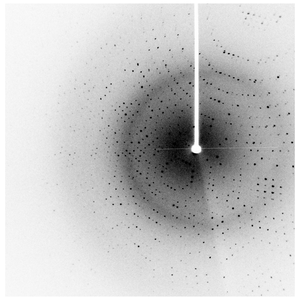

Dataset 314406a2_y2_####.img details

Number of frames 360 (1 - 360)
Distance [mm] 50.0
Oscillation width [°] 0.50
Omega [°] -105.0
Kappa / Chi [°] 10.0
Phi [°] 180.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)

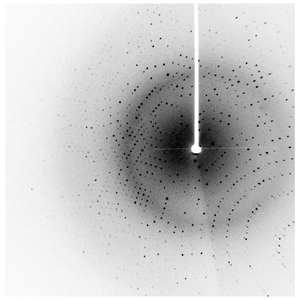

Dataset 314406a2_y_####.img details

Number of frames 360 (1 - 360)
Distance [mm] 50.0
Oscillation width [°] 0.50
Omega [°] -105.0
Kappa / Chi [°] 10.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)

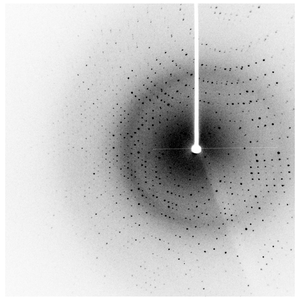

Dataset 314406a2_z2_####.img details

Number of frames 360 (1 - 360)
Distance [mm] 50.0
Oscillation width [°] 0.50
Omega [°] -105.0
Kappa / Chi [°] 20.0
Phi [°] 180.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)

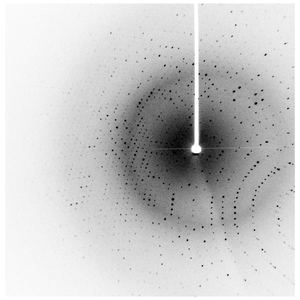

Dataset 314406a2_z_####.img details

Number of frames 360 (1 - 360)
Distance [mm] 50.0
Oscillation width [°] 0.50
Omega [°] -105.0
Kappa / Chi [°] 20.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)
