Diffraction project datasets StauA01062aM1-NADP-p218_6e4e
- Resolution: 1.9 Å
- Space group: P 61 2 2
PDB website for 6E4E
PDB validation report for 6E4E
doi:10.18430/m36e4e
Project details

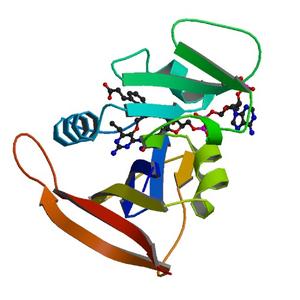

| Title | Crystal structure of dihydrofolate reductase from Staphylococcus aureus MW2 bound to NADP and p218 |
| Authors | Seattle Structural Genomics Center for Infectious Disease (SSGCID) |
| R / Rfree | 0.18 / 0.22 |
| Unit cell edges [Å] | 79.00 x 79.00 x 108.93 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |

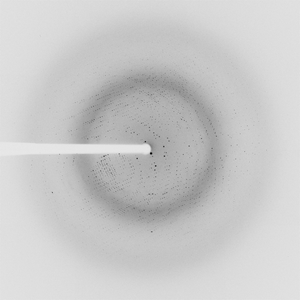

Dataset wan7-6.### details
| Number of frames | 119 (2 - 120) |
| Distance [mm] | 230.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 101.0 |
| Wavelength [Å] | 0.97872 |
| Experiment Date | 2018-05-31 |
| Equipment | 21-ID-F at APS (Advanced Photon Source) |
