Diffraction project datasets STEP_citrate_9eex
Project details
| Title |

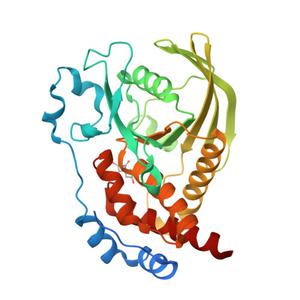

STEP (PTPN5) at high resolution with citrate bound in active site |
| Authors |
Guerrero, L., Ebrahim, A., Riley, B.T., Keedy, D.A. |
| R / Rfree |
0.13 / 0.15 |
| Unit cell edges [Å] |
40.11 x
64.15 x
136.04
|
| Unit cell angles [°] |
90.0,
90.0,
90.0
|

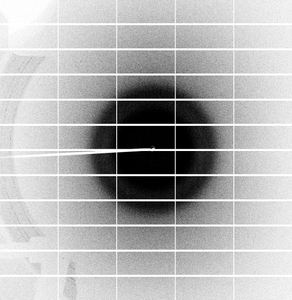

Dataset sample_1_#####.cbf details
| Number of frames |
20 (501 - 520) |
| Distance [mm] |
162.4 |
| Oscillation width [°] |
0.10 |
| Omega [°] |
356.5 |
| Wavelength [Å] |
0.97946 |
| Experiment Date |
2021-06-18 |
| Equipment |
19-ID 2
at NSLS II (National Synchrotron Light Source II)
|
Dataset sample_1_#####.cbf details
| Number of frames |
16 (532 - 547) |
| Distance [mm] |
162.4 |
| Oscillation width [°] |
0.10 |
| Omega [°] |
356.5 |
| Wavelength [Å] |
0.97946 |
| Experiment Date |
2021-06-18 |
| Equipment |
19-ID 2
at NSLS II (National Synchrotron Light Source II)
|
Dataset sample_1_#####.cbf details
| Number of frames |
16 (615 - 630) |
| Distance [mm] |
162.4 |
| Oscillation width [°] |
0.10 |
| Omega [°] |
356.5 |
| Wavelength [Å] |
0.97946 |
| Experiment Date |
2021-06-18 |
| Equipment |
19-ID 2
at NSLS II (National Synchrotron Light Source II)
|
Dataset sample_1_#####.cbf details
| Number of frames |
18 (682 - 699) |
| Distance [mm] |
162.4 |
| Oscillation width [°] |
0.10 |
| Omega [°] |
356.5 |
| Wavelength [Å] |
0.97946 |
| Experiment Date |
2021-06-18 |
| Equipment |
19-ID 2
at NSLS II (National Synchrotron Light Source II)
|
Dataset sample_1_#####.cbf details
| Number of frames |
23 (1460 - 1482) |
| Distance [mm] |
162.4 |
| Oscillation width [°] |
0.10 |
| Omega [°] |
356.5 |
| Wavelength [Å] |
0.97946 |
| Experiment Date |
2021-06-18 |
| Equipment |
19-ID 2
at NSLS II (National Synchrotron Light Source II)
|
Dataset sample_1_#####.cbf details
| Number of frames |
16 (1606 - 1621) |
| Distance [mm] |
162.4 |
| Oscillation width [°] |
0.10 |
| Omega [°] |
356.5 |
| Wavelength [Å] |
0.97946 |
| Experiment Date |
2021-06-18 |
| Equipment |
19-ID 2
at NSLS II (National Synchrotron Light Source II)
|
Dataset sample_1_#####.cbf details
| Number of frames |
15 (2067 - 2081) |
| Distance [mm] |
162.4 |
| Oscillation width [°] |
0.10 |
| Omega [°] |
356.5 |
| Wavelength [Å] |
0.97946 |
| Experiment Date |
2021-06-18 |
| Equipment |
19-ID 2
at NSLS II (National Synchrotron Light Source II)
|
Dataset sample_1_#####.cbf details
| Number of frames |
15 (2280 - 2294) |
| Distance [mm] |
162.4 |
| Oscillation width [°] |
0.10 |
| Omega [°] |
356.5 |
| Wavelength [Å] |
0.97946 |
| Experiment Date |
2021-06-18 |
| Equipment |
19-ID 2
at NSLS II (National Synchrotron Light Source II)
|
Dataset sample_1_#####.cbf details
| Number of frames |
15 (2482 - 2496) |
| Distance [mm] |
162.4 |
| Oscillation width [°] |
0.10 |
| Omega [°] |
356.5 |
| Wavelength [Å] |
0.97946 |
| Experiment Date |
2021-06-18 |
| Equipment |
19-ID 2
at NSLS II (National Synchrotron Light Source II)
|
Dataset sample_1_#####.cbf details
| Number of frames |
16 (2681 - 2696) |
| Distance [mm] |
162.4 |
| Oscillation width [°] |
0.10 |
| Omega [°] |
356.5 |
| Wavelength [Å] |
0.97946 |
| Experiment Date |
2021-06-18 |
| Equipment |
19-ID 2
at NSLS II (National Synchrotron Light Source II)
|
Dataset sample_1_#####.cbf details
| Number of frames |
16 (3469 - 3484) |
| Distance [mm] |
162.4 |
| Oscillation width [°] |
0.10 |
| Omega [°] |
356.5 |
| Wavelength [Å] |
0.97946 |
| Experiment Date |
2021-06-18 |
| Equipment |
19-ID 2
at NSLS II (National Synchrotron Light Source II)
|
Dataset sample_1_#####.cbf details
| Number of frames |
15 (3566 - 3580) |
| Distance [mm] |
162.4 |
| Oscillation width [°] |
0.10 |
| Omega [°] |
356.5 |
| Wavelength [Å] |
0.97946 |
| Experiment Date |
2021-06-18 |
| Equipment |
19-ID 2
at NSLS II (National Synchrotron Light Source II)
|
