Diffraction project datasets SP8921A_4oo3

  • Method: MAD
  • Resolution: 2.23 Å
  • Space group: P 21 21 21
Download all images (2.0 GB)

PDB website for 4OO3
PDB validation report for 4OO3

doi:10.18430/M34OO3

Project details

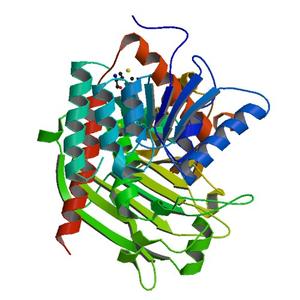

Title Crystal structure of a putative oxidoreductase (PARMER_00841) from Parabacteroides merdae ATCC 43184 at 2.23 A resolution
Authors JOINT CENTER FOR STRUCTURAL GENOMICS (JCSG)
Bioentity None
R / Rfree 0.19 / 0.22
Unit cell edges [Å] 48.44 x 93.51 x 95.79
Unit cell angles [°] 90.0, 90.0, 90.0

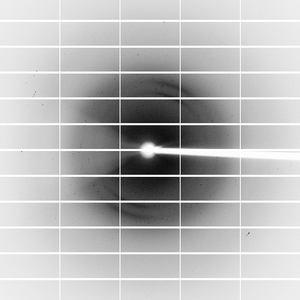

Dataset 200640_1_E1_#####.cbf details

Number of frames 180 (1 - 180)
Distance [mm] 350.0
Oscillation width [°] 0.50
Phi [°] 72.0
Wavelength [Å] 0.97895
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

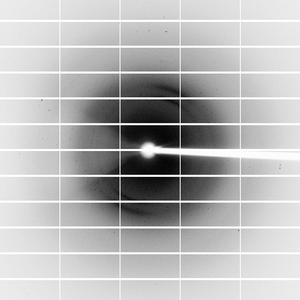

Dataset 200640_1_E2_#####.cbf details

Number of frames 180 (1 - 180)
Distance [mm] 350.0
Oscillation width [°] 0.50
Phi [°] 72.0
Wavelength [Å] 0.91837
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

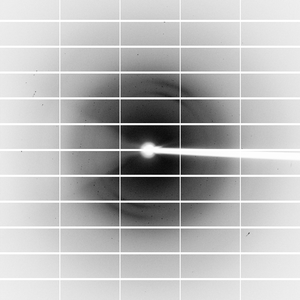

Dataset 200640_2_#####.cbf details

Number of frames 180 (1 - 180)
Distance [mm] 350.0
Oscillation width [°] 0.50
Phi [°] 72.0
Wavelength [Å] 0.97959
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
