Diffraction project datasets SP7919F_4yod

  • Method: MAD
  • Resolution: 1.9 Å
  • Space group: P 1 21 1
Download all images (4.2 GB)

PDB website for 4YOD

doi:10.18430/M3WK5R

Project details

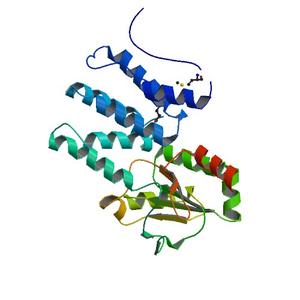

Title Crystal structure of a thioredoxin-like protein (BACCAC_02376) from Bacteroides caccae ATCC 43185 at 1.90 A resolution
Authors JOINT CENTER FOR STRUCTURAL GENOMICS (JCSG)
R / Rfree 0.18 / 0.21
Unit cell edges [Å] 46.21 x 45.42 x 70.67
Unit cell angles [°] 90.0, 97.4, 90.0

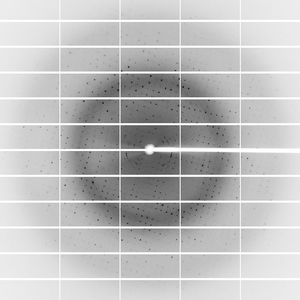

Dataset 208475_1_E1_#####.cbf details

Number of frames 360 (1 - 360)
Distance [mm] 350.0
Oscillation width [°] 0.50
Phi [°] 86.0
Wavelength [Å] 0.97960
Experiment Date 2015-01-15
Equipment BL12-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

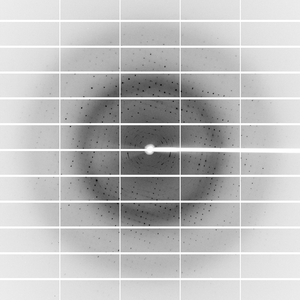

Dataset 208475_1_E2_#####.cbf details

Number of frames 360 (1 - 360)
Distance [mm] 350.0
Oscillation width [°] 0.50
Phi [°] 86.0
Wavelength [Å] 0.91840
Experiment Date 2015-01-15
Equipment BL12-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

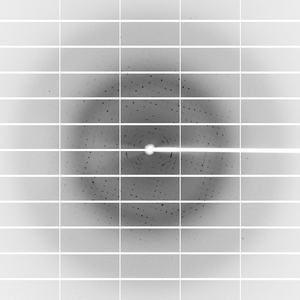

Dataset 208475_2_#####.cbf details

Number of frames 360 (1 - 360)
Distance [mm] 350.0
Oscillation width [°] 0.50
Phi [°] 86.0
Wavelength [Å] 0.97950
Experiment Date 2015-01-15
Equipment BL12-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
