Diffraction project datasets SP5305Y_4fdy
- Method: MAD
- Resolution: 2.23 Å
- Space group: P 1 21 1
PDB website for 4FDY
PDB validation report for 4FDY
doi:10.18430/M34FDY
Project details

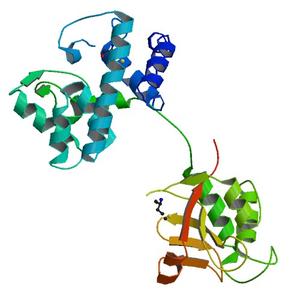

| Title | Crystal structure of a similar to lipoprotein, NLP/P60 family (SAV0400) from Staphylococcus aureus subsp. aureus Mu50 at 2.23 A resolution |
| Authors | Xu, Q., Chiu, H.J., Farr, C.L., Jaroszewski, L., Knuth, M.W., Miller, M.D., Lesley, S.A., Godzik, A., Elsliger, M.A., Deacon, A.M., Wilson, I.A. |
| Bioentity | None |
| R / Rfree | 0.20 / 0.24 |
| Unit cell edges [Å] | 40.67 x 71.99 x 124.92 |
| Unit cell angles [°] | 90.0, 95.9, 90.0 |

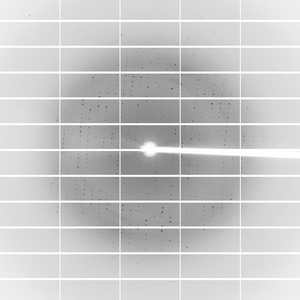

Dataset 179344_1_E1_#####.cbf details
| Number of frames | 360 (1 - 360) |
| Distance [mm] | 450.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 201.0 |
| Wavelength [Å] | 0.97895 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |

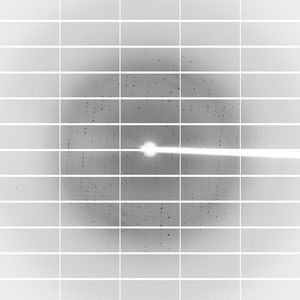

Dataset 179344_1_E2_#####.cbf details
| Number of frames | 360 (1 - 360) |
| Distance [mm] | 450.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 201.0 |
| Wavelength [Å] | 0.91837 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |

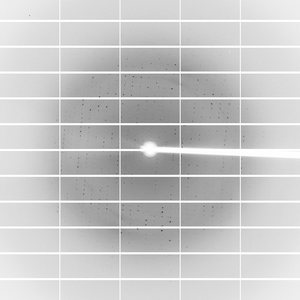

Dataset 179344_2_#####.cbf details
| Number of frames | 360 (1 - 360) |
| Distance [mm] | 450.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 201.0 |
| Wavelength [Å] | 0.97853 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |
