Diffraction project datasets SP3088D_4ogz

  • Method: MAD
  • Resolution: 2.0 Å
  • Space group: P 1 21 1
Download all images (2.7 GB)

PDB website for 4OGZ
PDB validation report for 4OGZ

doi:10.18430/M34OGZ

Project details

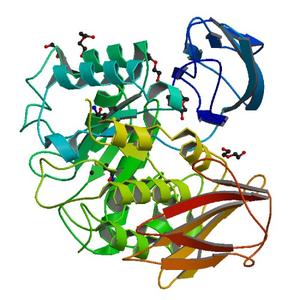

Title Crystal structure of a putative alpha-galactosidase/melibiase (BF4189) from Bacteroides fragilis NCTC 9343 at 2.00 A resolution
Authors JOINT CENTER FOR STRUCTURAL GENOMICS (JCSG)
Bioentity None
R / Rfree 0.17 / 0.20
Unit cell edges [Å] 50.96 x 170.87 x 52.62
Unit cell angles [°] 90.0, 106.7, 90.0

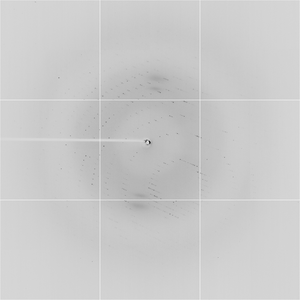

Dataset 198780_1_E1_###.img details

Number of frames 180 (1 - 180)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 117.0
Wavelength [Å] 0.97936
Experiment Date 2013-10-17
Equipment 8.2.1 at ALS (Advanced Light Source)

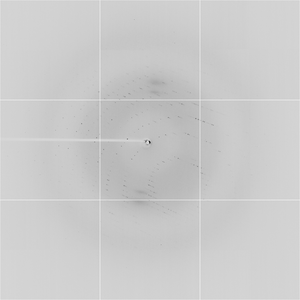

Dataset 198780_1_E2_###.img details

Number of frames 180 (1 - 180)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 117.0
Wavelength [Å] 0.91840
Experiment Date 2013-10-17
Equipment 8.2.1 at ALS (Advanced Light Source)

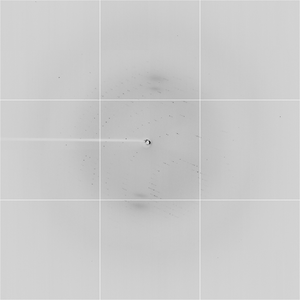

Dataset 198780_2_###.img details

Number of frames 179 (1 - 179)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 117.0
Wavelength [Å] 0.97918
Experiment Date 2013-10-17
Equipment 8.2.1 at ALS (Advanced Light Source)
