Diffraction project datasets SP2600D_4h09

  • Method: MAD
  • Resolution: 2.5 Å
  • Space group: P 61
Download all images (1.7 GB)

PDB website for 4H09

doi:10.18430/M34H09

Project details

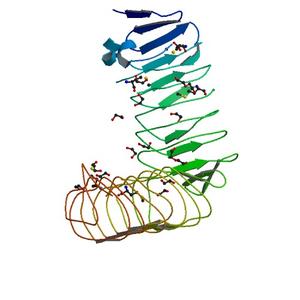

Title Crystal structure of a leucine-rich repeat protein (EUBVEN_01088) from Eubacterium ventriosum ATCC 27560 at 2.50 A resolution
Authors Joint Center for Structural Genomics (JCSG)
R / Rfree 0.18 / 0.21
Unit cell edges [Å] 105.51 x 105.51 x 361.57
Unit cell angles [°] 90.0, 90.0, 120.0

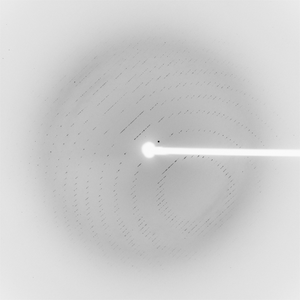

Dataset 181314_2_E1_#####.mccd details

Number of frames 45 (17 - 61)
Distance [mm] 400.0
Oscillation width [°] 1.00
Phi [°] 174.0
Wavelength [Å] 0.97925
Experiment Date 2012-05-03
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

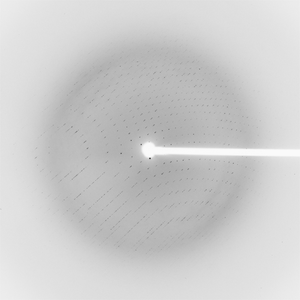

Dataset 181314_2_E2_#####.mccd details

Number of frames 61 (1 - 61)
Distance [mm] 400.0
Oscillation width [°] 1.00
Phi [°] 158.0
Wavelength [Å] 0.91837
Experiment Date 2012-05-03
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
