Diffraction project datasets SP19352A_5bxg
Project details
| Title |

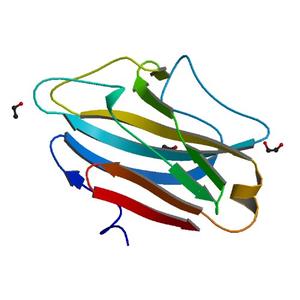

Crystal structure of an uncharacterized beta-sandwich protein (CD630_09570) from Clostridium difficile 630 at 1.90 A resolution |
| Authors |
JOINT CENTER FOR STRUCTURAL GENOMICS (JCSG) |
| R / Rfree |
0.17 / 0.19 |
| Unit cell edges [Å] |
69.11 x
69.11 x
87.80
|
| Unit cell angles [°] |
90.0,
90.0,
120.0
|

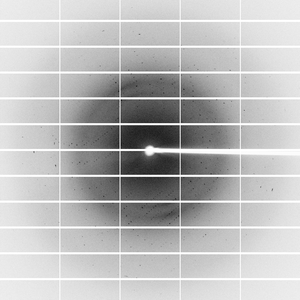

Dataset 211518_1_#####.cbf details
| Number of frames |
240 (1 - 240) |
| Distance [mm] |
350.0 |
| Oscillation width [°] |
0.25 |
| Phi [°] |
97.0 |
| Wavelength [Å] |
0.97923 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

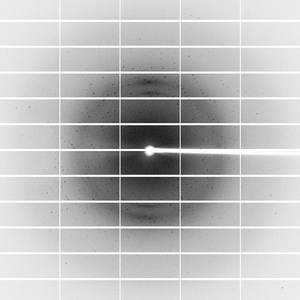

Dataset 211518_2_#####.cbf details
| Number of frames |
240 (1 - 240) |
| Distance [mm] |
350.0 |
| Oscillation width [°] |
0.25 |
| Phi [°] |
157.0 |
| Wavelength [Å] |
0.97923 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
