Diffraction project datasets SP19336A_4exr

  • Method: MAD
  • Resolution: 1.85 Å
  • Space group: P 43 2 2
Download all images (2.5 GB)

PDB website for 4EXR
PDB validation report for 4EXR

doi:10.18430/M34EXR

Project details

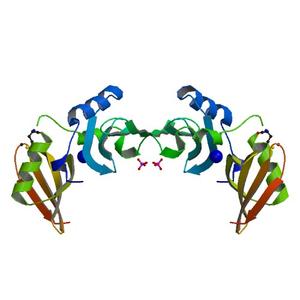

Title Crystal structure of a putative lipoprotein (CD1622) from Clostridium difficile 630 at 1.85 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.18 / 0.21
Unit cell edges [Å] 77.63 x 77.63 x 84.86
Unit cell angles [°] 90.0, 90.0, 90.0

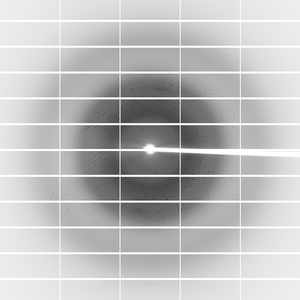

Dataset 180331_1_E1_#####.cbf details

Number of frames 180 (1 - 180)
Distance [mm] 320.0
Oscillation width [°] 0.50
Phi [°] -36.0
Wavelength [Å] 0.97903
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

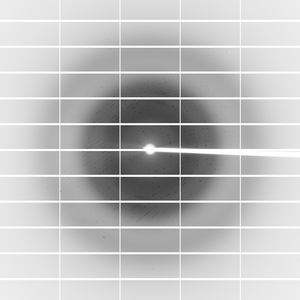

Dataset 180331_1_E2_#####.cbf details

Number of frames 180 (1 - 180)
Distance [mm] 320.0
Oscillation width [°] 0.50
Phi [°] -36.0
Wavelength [Å] 0.91837
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

Dataset 180331_2_#####.cbf details

Number of frames 180 (1 - 180)
Distance [mm] 320.0
Oscillation width [°] 0.50
Phi [°] -36.0
Wavelength [Å] 0.97845
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
