Diffraction project datasets SP19308B_4fm3

  • Method: MAD
  • Resolution: 2.47 Å
  • Space group: C 1 2 1
Download all images (5.7 GB)

PDB website for 4FM3
PDB validation report for 4FM3

doi:10.18430/M34FM3

Project details

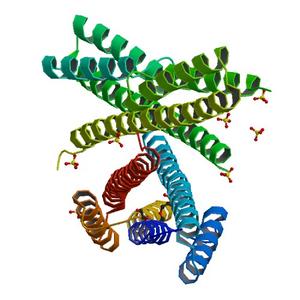

Title Crystal structure of a DUF4398 family protein (PA2901) from Pseudomonas aeruginosa PAO1 at 2.47 A resolution
Authors JOINT CENTER FOR STRUCTURAL GENOMICS (JCSG)
Bioentity None
R / Rfree 0.20 / 0.24
Unit cell edges [Å] 110.69 x 48.74 x 89.93
Unit cell angles [°] 90.0, 109.8, 90.0

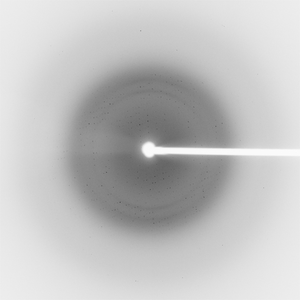

Dataset 181247_1_E1_#####.mccd details

Number of frames 125 (1 - 125)
Distance [mm] 300.0
Oscillation width [°] 1.00
Phi [°] 182.0
Wavelength [Å] 0.97922
Experiment Date 2012-05-03
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

Dataset 181247_1_E2_#####.mccd details

Number of frames 125 (1 - 125)
Distance [mm] 300.0
Oscillation width [°] 1.00
Phi [°] 182.0
Wavelength [Å] 0.91162
Experiment Date 2012-05-03
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

Dataset 181247_2_#####.mccd details

Number of frames 125 (1 - 125)
Distance [mm] 300.0
Oscillation width [°] 1.00
Phi [°] 182.0
Wavelength [Å] 0.97901
Experiment Date 2012-05-03
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
