Diffraction project datasets SP19248A_4jx2

  • Method: MAD
  • Resolution: 2.65 Å
  • Space group: P 21 21 2
Download all images (2.1 GB)

PDB website for 4JX2
PDB validation report for 4JX2

doi:10.18430/M34JX2

Project details

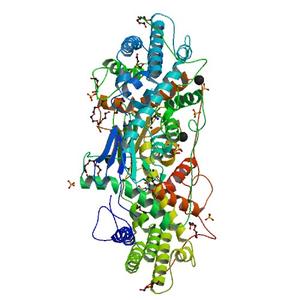

Title Crystal structure of a putative secreted protein (lpg1979) from Legionella pneumophila subsp. pneumophila str. Philadelphia 1 at 2.65 A resolution
Authors JOINT CENTER FOR STRUCTURAL GENOMICS (JCSG)
Bioentity None
R / Rfree 0.16 / 0.20
Unit cell edges [Å] 121.94 x 145.09 x 63.95
Unit cell angles [°] 90.0, 90.0, 90.0

Dataset 192242_1_E1_#####.cbf details

Number of frames 180 (1 - 180)
Distance [mm] 380.0
Oscillation width [°] 0.50
Phi [°] 197.0
Wavelength [Å] 0.97932
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

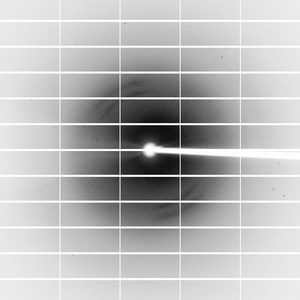

Dataset 192242_1_E2_#####.cbf details

Number of frames 180 (1 - 180)
Distance [mm] 380.0
Oscillation width [°] 0.50
Phi [°] 197.0
Wavelength [Å] 0.91837
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

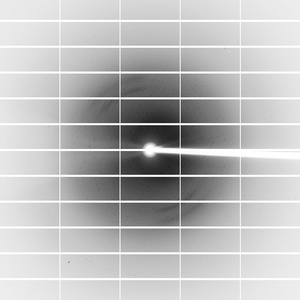

Dataset 192242_2_#####.cbf details

Number of frames 180 (1 - 180)
Distance [mm] 380.0
Oscillation width [°] 0.50
Phi [°] 197.0
Wavelength [Å] 0.97858
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
