Diffraction project datasets SP19119A_4e72
Project details
| Title |

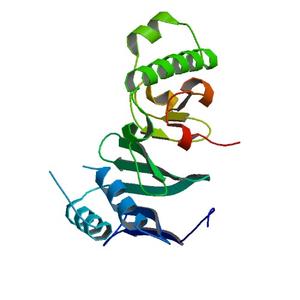

Crystal structure of a DUF3298 family protein (PA4972) from Pseudomonas aeruginosa PAO1 at 2.15 A resolution |
| Authors |
JOINT CENTER FOR STRUCTURAL GENOMICS (JCSG) |
| R / Rfree |
0.17 / 0.21 |
| Unit cell edges [Å] |
102.84 x
51.89 x
40.86
|
| Unit cell angles [°] |
90.0,
98.3,
90.0
|

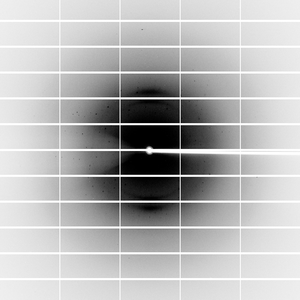

Dataset 177797_1_E1_#####.cbf details
| Number of frames |
360 (1 - 360) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
0.25 |
| Phi [°] |
432.0 |
| Wavelength [Å] |
0.97960 |
| Experiment Date |
2012-02-29 |
| Equipment |
BL12-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

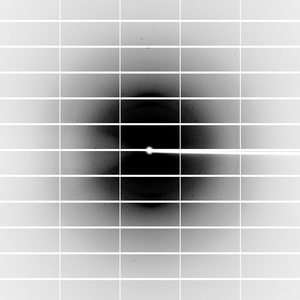

Dataset 177797_1_E2_#####.cbf details
| Number of frames |
360 (1 - 360) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
0.25 |
| Phi [°] |
432.0 |
| Wavelength [Å] |
0.91840 |
| Experiment Date |
2012-02-29 |
| Equipment |
BL12-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

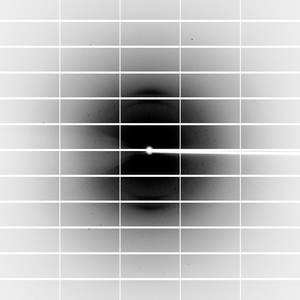

Dataset 177797_2_E1_#####.cbf details
| Number of frames |
360 (1 - 360) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
0.25 |
| Phi [°] |
522.0 |
| Wavelength [Å] |
0.97960 |
| Experiment Date |
2012-02-29 |
| Equipment |
BL12-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

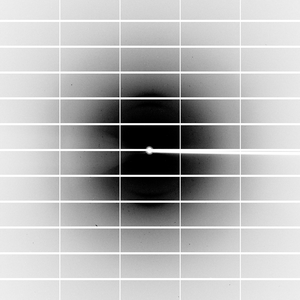

Dataset 177797_2_E2_#####.cbf details
| Number of frames |
360 (1 - 360) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
0.25 |
| Phi [°] |
522.0 |
| Wavelength [Å] |
0.91840 |
| Experiment Date |
2012-02-29 |
| Equipment |
BL12-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

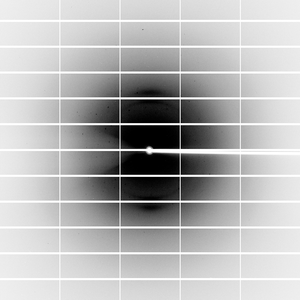

Dataset 177797_3_#####.cbf details
| Number of frames |
900 (1 - 900) |
| Distance [mm] |
300.0 |
| Oscillation width [°] |
0.20 |
| Phi [°] |
432.0 |
| Wavelength [Å] |
0.97940 |
| Experiment Date |
2012-02-29 |
| Equipment |
BL12-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
