Diffraction project datasets SP19086A_4ezi

  • Method: SAD
  • Resolution: 1.15 Å
  • Space group: P 21 21 21
Download all images (5.9 GB)

PDB website for 4EZI

doi:10.18430/M34EZI

Project details

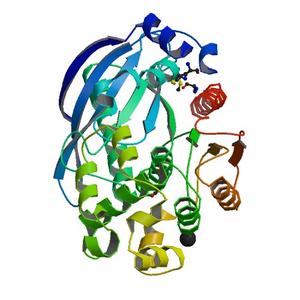

Title Crystal structure of a putative hydrolase (lpg1103) from Legionella pneumophila subsp. pneumophila str. Philadelphia 1 at 1.15 A resolution
Authors Joint Center for Structural Genomics (JCSG)
R / Rfree 0.14 / 0.16
Unit cell edges [Å] 50.88 x 63.49 x 114.55
Unit cell angles [°] 90.0, 90.0, 90.0

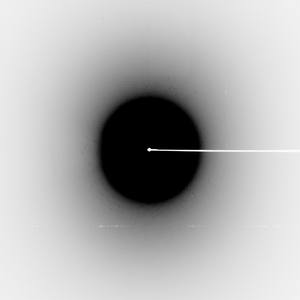

Dataset 179100_1_#####.mccd details

Number of frames 240 (1 - 240)
Distance [mm] 100.0
Oscillation width [°] 0.50
Phi [°] 165.0
Wavelength [Å] 0.97916
Experiment Date 2012-03-16
Equipment BL14-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

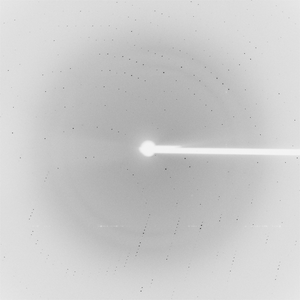

Dataset 179100_2_#####.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 400.0
Oscillation width [°] 0.50
Phi [°] 165.0
Wavelength [Å] 0.97916
Experiment Date 2012-03-16
Equipment BL14-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
