Diffraction project datasets SP19058B_3n5l
Project details
| Title |

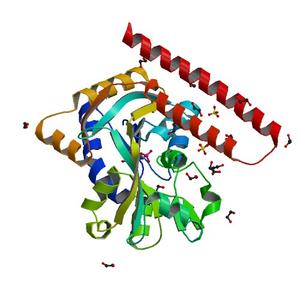

Crystal structure of a binding protein component of ABC phosphonate transporter (PA3383) from Pseudomonas aeruginosa at 1.97 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| R / Rfree |
0.16 / 0.19 |
| Unit cell edges [Å] |
98.89 x
98.89 x
170.79
|
| Unit cell angles [°] |
90.0,
90.0,
120.0
|

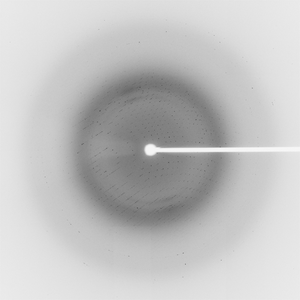

Dataset 153915_1_E1_####.mccd details
| Number of frames |
120 (1 - 120) |
| Distance [mm] |
250.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
254.0 |
| Wavelength [Å] |
0.97936 |
| Experiment Date |
2010-05-13 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

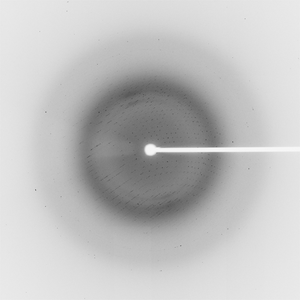

Dataset 153915_1_E2_####.mccd details
| Number of frames |
120 (1 - 120) |
| Distance [mm] |
250.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
254.0 |
| Wavelength [Å] |
0.91837 |
| Experiment Date |
2010-05-13 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
