Diffraction project datasets SP19004A_3uc2

  • Method: MAD
  • Resolution: 2.09 Å
  • Space group: P 21 21 21
Download all images (9.1 GB)

PDB website for 3UC2
PDB validation report for 3UC2

doi:10.18430/M33UC2

Project details

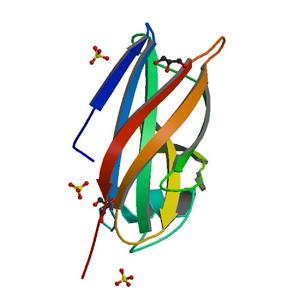

Title Crystal structure of a DUF4426 family protein (PA0388) from Pseudomonas aeruginosa PAO1 at 2.09 A resolution
Authors JOINT CENTER FOR STRUCTURAL GENOMICS (JCSG)
Bioentity None
R / Rfree 0.21 / 0.23
Unit cell edges [Å] 44.45 x 45.44 x 294.50
Unit cell angles [°] 90.0, 90.0, 90.0

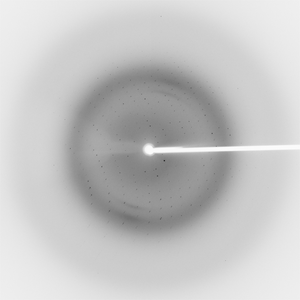

Dataset 167991_1_E1_####.mccd details

Number of frames 200 (1 - 200)
Distance [mm] 280.0
Oscillation width [°] 0.50
Phi [°] 218.0
Wavelength [Å] 0.97916
Experiment Date 2011-07-21
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

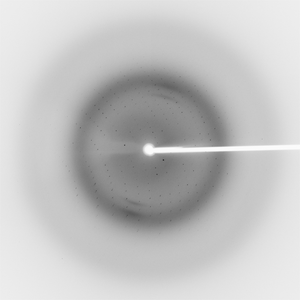

Dataset 167991_1_E2_####.mccd details

Number of frames 200 (1 - 200)
Distance [mm] 280.0
Oscillation width [°] 0.50
Phi [°] 218.0
Wavelength [Å] 0.91837
Experiment Date 2011-07-21
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

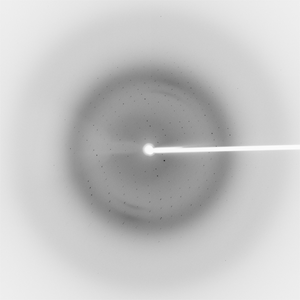

Dataset 167991_2_####.mccd details

Number of frames 200 (1 - 200)
Distance [mm] 280.0
Oscillation width [°] 0.50
Phi [°] 218.0
Wavelength [Å] 0.97886
Experiment Date 2011-07-21
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
