Diffraction project datasets SP18816B_4ps6
Project details
| Title |

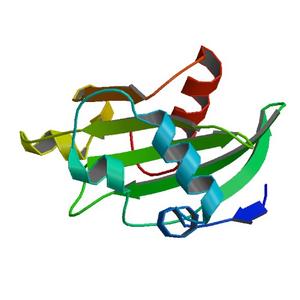

Crystal structure of an inhibitor of vertebrate lysozyme (PA3902) from Pseudomonas aeruginosa PAO1 at 1.25 A resolution |
| Authors |
JOINT CENTER FOR STRUCTURAL GENOMICS (JCSG) |
| R / Rfree |
0.12 / 0.16 |
| Unit cell edges [Å] |
33.45 x
47.06 x
36.39
|
| Unit cell angles [°] |
90.0,
96.9,
90.0
|

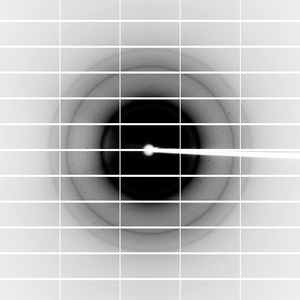

Dataset 200046_1_#####.cbf details
| Number of frames |
360 (1 - 360) |
| Distance [mm] |
250.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
226.0 |
| Wavelength [Å] |
0.97959 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

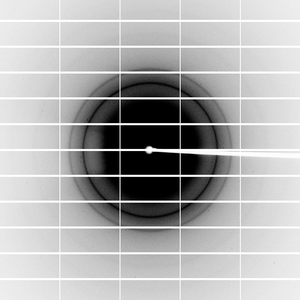

Dataset 200046_2_#####.cbf details
| Number of frames |
360 (1 - 360) |
| Distance [mm] |
200.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
46.0 |
| Wavelength [Å] |
0.97959 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
