Diffraction project datasets SP18816B_4ps6
- Method: SAD
- Resolution: 1.25 Å
- Space group: P 1 21 1
PDB website for 4PS6
PDB validation report for 4PS6
doi:10.18430/M34PS6
Project details
| Title | Crystal structure of an inhibitor of vertebrate lysozyme (PA3902) from Pseudomonas aeruginosa PAO1 at 1.25 A resolution |
| Authors | JOINT CENTER FOR STRUCTURAL GENOMICS (JCSG) |
| Bioentity | None |
| R / Rfree | 0.12 / 0.16 |
| Unit cell edges [Å] | 33.45 x 47.06 x 36.39 |
| Unit cell angles [°] | 90.0, 96.9, 90.0 |

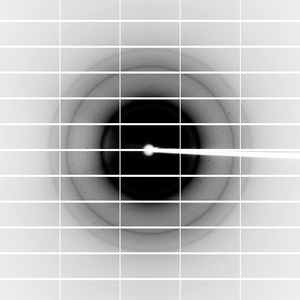

Dataset 200046_1_#####.cbf details
| Number of frames | 360 (1 - 360) |
| Distance [mm] | 250.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 226.0 |
| Wavelength [Å] | 0.97959 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |

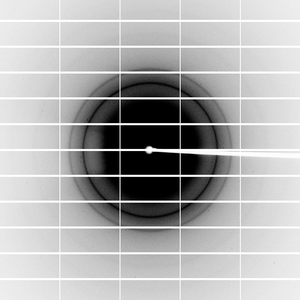

Dataset 200046_2_#####.cbf details
| Number of frames | 360 (1 - 360) |
| Distance [mm] | 200.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 46.0 |
| Wavelength [Å] | 0.97959 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |
