Diffraction project datasets SP18632A_4pwu

  • Method: MAD
  • Resolution: 2.45 Å
  • Space group: C 1 2 1
Download all images (2.0 GB)

PDB website for 4PWU
PDB validation report for 4PWU

doi:10.18430/M34PWU

Project details

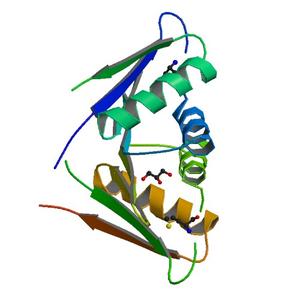

Title Crystal structure of a modulator protein MzrA (KPN_03524) from Klebsiella pneumoniae subsp. pneumoniae MGH 78578 at 2.45 A resolution
Authors JOINT CENTER FOR STRUCTURAL GENOMICS (JCSG)
Bioentity None
R / Rfree 0.20 / 0.25
Unit cell edges [Å] 61.77 x 74.38 x 74.20
Unit cell angles [°] 90.0, 99.3, 90.0

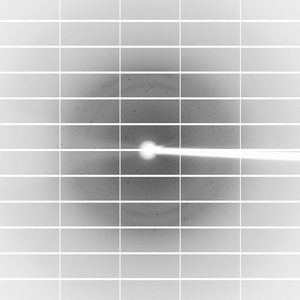

Dataset 200958_1_E1_#####.cbf details

Number of frames 180 (1 - 180)
Distance [mm] 400.0
Oscillation width [°] 1.00
Phi [°] 91.0
Wavelength [Å] 0.97959
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

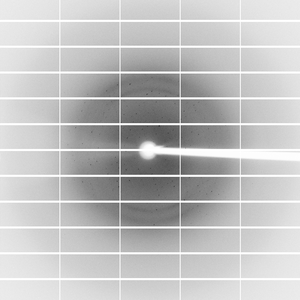

Dataset 200958_1_E2_#####.cbf details

Number of frames 180 (1 - 180)
Distance [mm] 400.0
Oscillation width [°] 1.00
Phi [°] 91.0
Wavelength [Å] 0.91837
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

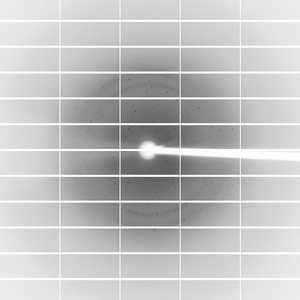

Dataset 200958_2_#####.cbf details

Number of frames 180 (1 - 180)
Distance [mm] 400.0
Oscillation width [°] 1.00
Phi [°] 91.0
Wavelength [Å] 0.97898
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
