Diffraction project datasets SP18574A_4xvv

  • Method: SAD
  • Resolution: 1.7 Å
  • Space group: P 21 21 21
Download all images (3.3 GB)

PDB website for 4XVV
PDB validation report for 4XVV

doi:10.18430/m30c7c

Project details

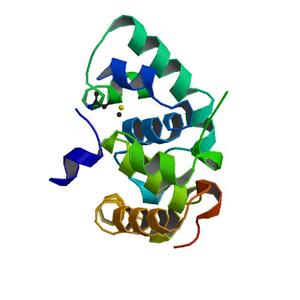

Title Crystal structure of an Acid stress chaperone HdeB (KPN_03484) from Klebsiella pneumoniae subsp. pneumoniae MGH 78578 at 1.70 A resolution
Authors JOINT CENTER FOR STRUCTURAL GENOMICS (JCSG)
Bioentity None
R / Rfree 0.20 / 0.23
Unit cell edges [Å] 36.47 x 39.44 x 98.26
Unit cell angles [°] 90.0, 90.0, 90.0

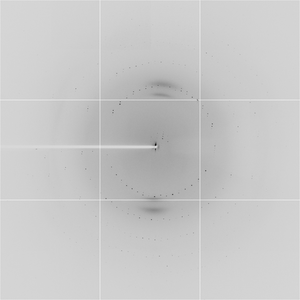

Dataset 207747_1_E1_###.img details

Number of frames 200 (1 - 200)
Distance [mm] 240.0
Oscillation width [°] 0.50
Phi [°] 180.0
Wavelength [Å] 0.97987
Experiment Date 2014-10-04
Equipment 8.2.2 at ALS (Advanced Light Source)

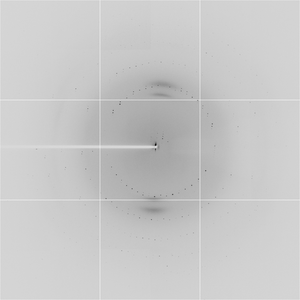

Dataset 207747_1_E2_###.img details

Number of frames 200 (1 - 200)
Distance [mm] 240.0
Oscillation width [°] 0.50
Phi [°] 180.0
Wavelength [Å] 0.95373
Experiment Date 2014-10-04
Equipment 8.2.2 at ALS (Advanced Light Source)

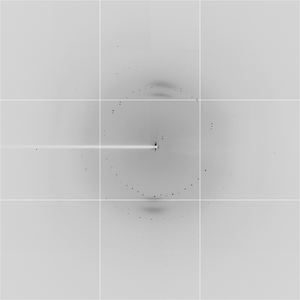

Dataset 207747_2_###.img details

Number of frames 200 (1 - 200)
Distance [mm] 240.0
Oscillation width [°] 0.50
Phi [°] 180.0
Wavelength [Å] 0.97973
Experiment Date 2014-10-04
Equipment 8.2.2 at ALS (Advanced Light Source)
