Diffraction project datasets SP18483B_5cai

  • Method: MAD
  • Resolution: 2.3 Å
  • Space group: I 41 2 2

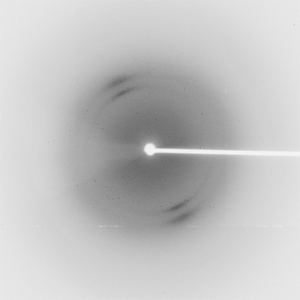

Download all images (6.4 GB)

PDB website for 5CAI
PDB validation report for 5CAI

doi:10.18430/M35CAI

Project details

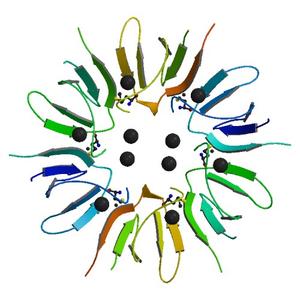

Title Crystal structure of a putative lipoprotein from the DUF903 family (KPN_03160) from Klebsiella pneumoniae subsp. pneumoniae MGH 78578 at 2.30 A resolution
Authors JOINT CENTER FOR STRUCTURAL GENOMICS (JCSG)
Bioentity None
R / Rfree 0.18 / 0.22
Unit cell edges [Å] 108.21 x 108.21 x 142.19
Unit cell angles [°] 90.0, 90.0, 90.0

Dataset 211010_1_E1_#####.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 300.0
Oscillation width [°] 0.50
Phi [°] 335.0
Wavelength [Å] 0.97934
Experiment Date 2015-04-12
Equipment BL14-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

Dataset 211010_1_E2_#####.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 300.0
Oscillation width [°] 0.50
Phi [°] 335.0
Wavelength [Å] 0.95369
Experiment Date 2015-04-12
Equipment BL14-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

Dataset 211010_2_#####.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 300.0
Oscillation width [°] 0.50
Phi [°] 335.0
Wavelength [Å] 0.97919
Experiment Date 2015-04-12
Equipment BL14-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
