Diffraction project datasets SP18390A_4lqz

  • Method: MAD
  • Resolution: 1.92 Å
  • Space group: P 4
Download all images (2.2 GB)

PDB website for 4LQZ
PDB validation report for 4LQZ

doi:10.18430/M34LQZ

Project details

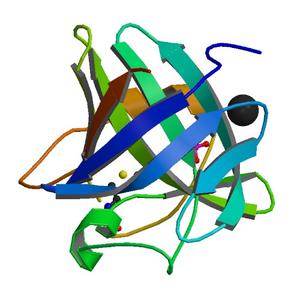

Title Crystal structure of a DUF4909 family protein (SAV1798) from Staphylococcus aureus subsp. aureus Mu50 at 1.92 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.20 / 0.24
Unit cell edges [Å] 60.35 x 60.35 x 37.39
Unit cell angles [°] 90.0, 90.0, 90.0

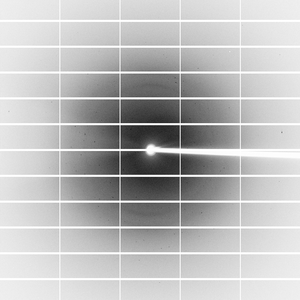

Dataset 195844_1_E1_#####.cbf details

Number of frames 200 (1 - 200)
Distance [mm] 400.0
Oscillation width [°] 0.50
Phi [°] 281.0
Wavelength [Å] 0.97987
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

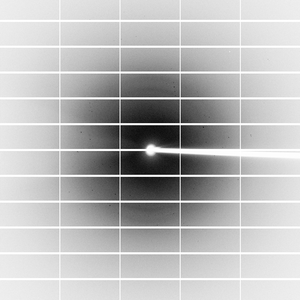

Dataset 195844_1_E2_#####.cbf details

Number of frames 200 (1 - 200)
Distance [mm] 400.0
Oscillation width [°] 0.50
Phi [°] 281.0
Wavelength [Å] 0.91837
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

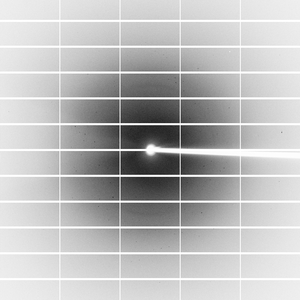

Dataset 195844_2_#####.cbf details

Number of frames 200 (1 - 200)
Distance [mm] 400.0
Oscillation width [°] 0.50
Phi [°] 281.0
Wavelength [Å] 0.97930
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
