Diffraction project datasets SP18357A_4jm1

  • Method: MAD
  • Resolution: 1.4 Å
  • Space group: P 21 21 21
Download all images (2.4 GB)

PDB website for 4JM1
PDB validation report for 4JM1

doi:10.18430/M34JM1

Project details

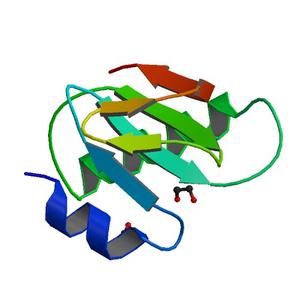

Title Crystal structure of a protein with alpha-lytic protease prodomain-like fold (BDI_0842) from Parabacteroides distasonis ATCC 8503 at 1.40 A resolution
Authors JOINT CENTER FOR STRUCTURAL GENOMICS (JCSG)
Bioentity None
R / Rfree 0.13 / 0.17
Unit cell edges [Å] 37.40 x 45.67 x 48.10
Unit cell angles [°] 90.0, 90.0, 90.0

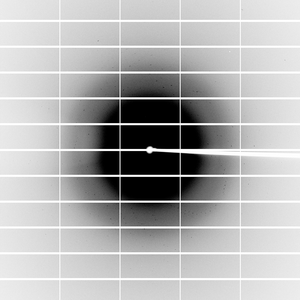

Dataset 192787_1_#####.cbf details

Number of frames 173 (1 - 173)
Distance [mm] 250.0
Oscillation width [°] 0.50
Phi [°] 230.0
Wavelength [Å] 0.88557
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

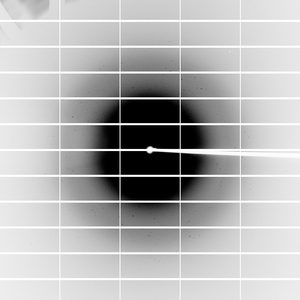

Dataset 192787_2_E1_#####.cbf details

Number of frames 220 (1 - 220)
Distance [mm] 250.0
Oscillation width [°] 0.50
Phi [°] 230.0
Wavelength [Å] 0.97849
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

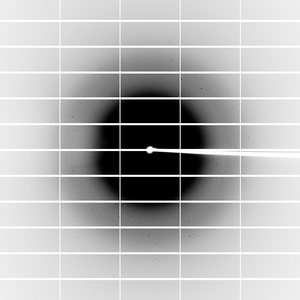

Dataset 192787_2_E2_#####.cbf details

Number of frames 220 (1 - 220)
Distance [mm] 250.0
Oscillation width [°] 0.50
Phi [°] 230.0
Wavelength [Å] 0.97917
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
