Diffraction project datasets SP18154A_4iaj

  • Method: MAD
  • Resolution: 1.91 Å
  • Space group: P 1 21 1
Download all images (4.9 GB)

PDB website for 4IAJ
PDB validation report for 4IAJ

doi:10.18430/M34IAJ

Project details

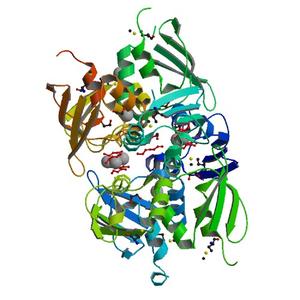

Title Crystal structure of a conserved domain protein (SP_1775) from Streptococcus pneumoniae TIGR4 at 1.91 A resolution
Authors JOINT CENTER FOR STRUCTURAL GENOMICS (JCSG)
Bioentity None
R / Rfree 0.18 / 0.23
Unit cell edges [Å] 50.15 x 98.17 x 68.93
Unit cell angles [°] 90.0, 107.2, 90.0

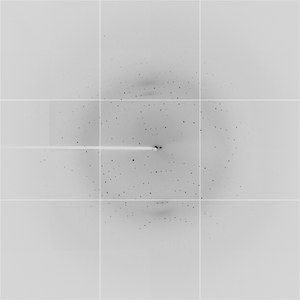

Dataset 185556_1_E1_###.img details

Number of frames 296 (1 - 296)
Distance [mm] 250.0
Oscillation width [°] 0.50
Wavelength [Å] 0.97934
Experiment Date 2012-09-20
Equipment 8.2.2 at ALS (Advanced Light Source)

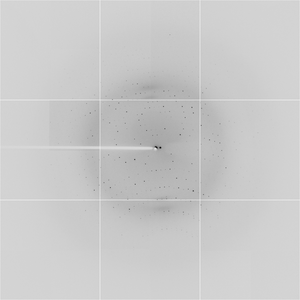

Dataset 185556_1_E2_###.img details

Number of frames 296 (1 - 296)
Distance [mm] 250.0
Oscillation width [°] 0.50
Wavelength [Å] 0.91840
Experiment Date 2012-09-20
Equipment 8.2.2 at ALS (Advanced Light Source)

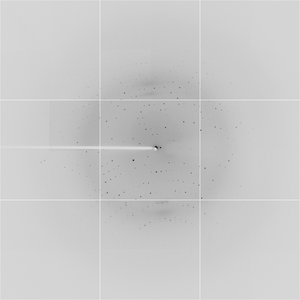

Dataset 185556_2_###.img details

Number of frames 296 (1 - 296)
Distance [mm] 250.0
Oscillation width [°] 0.50
Wavelength [Å] 0.97911
Experiment Date 2012-09-20
Equipment 8.2.2 at ALS (Advanced Light Source)
