Diffraction project datasets SP18049A_4h0a
Project details
| Title |

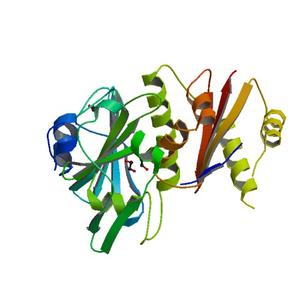

Crystal structure of a cysteine-rich secretory protein (SAV1118) from Staphylococcus aureus subsp. aureus Mu50 at 1.90 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| Bioentity |
None |
| R / Rfree |
0.19 / 0.22 |
| Unit cell edges [Å] |
56.39 x
78.19 x
77.16
|
| Unit cell angles [°] |
90.0,
94.3,
90.0
|

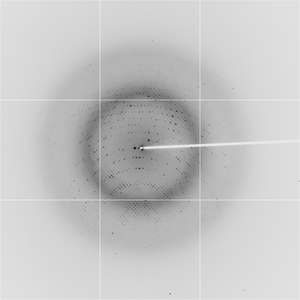

Dataset 171391_1_E1_###.img details
| Number of frames |
180 (1 - 180) |
| Distance [mm] |
200.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
208.0 |
| Wavelength [Å] |
0.97950 |
| Experiment Date |
2011-10-15 |
| Equipment |
8.2.2
at ALS (Advanced Light Source)
|

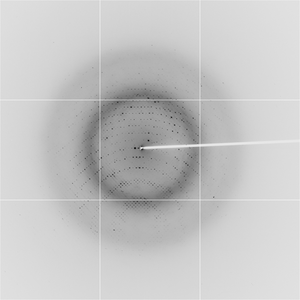

Dataset 171391_1_E2_###.img details
| Number of frames |
180 (1 - 180) |
| Distance [mm] |
200.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
208.0 |
| Wavelength [Å] |
0.94640 |
| Experiment Date |
2011-10-15 |
| Equipment |
8.2.2
at ALS (Advanced Light Source)
|

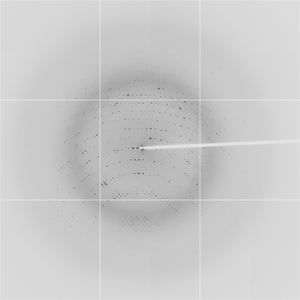

Dataset 171391_2_###.img details
| Number of frames |
180 (1 - 180) |
| Distance [mm] |
250.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
208.0 |
| Wavelength [Å] |
0.97930 |
| Experiment Date |
2011-10-15 |
| Equipment |
8.2.2
at ALS (Advanced Light Source)
|
