Diffraction project datasets SP17980D_3o13

  • Method: MAD
  • Resolution: 2.05 Å
  • Space group: I 2 2 2
Download all images (8.8 GB)

PDB website for 3O13
PDB validation report for 3O13

doi:10.18430/M33O13

Project details

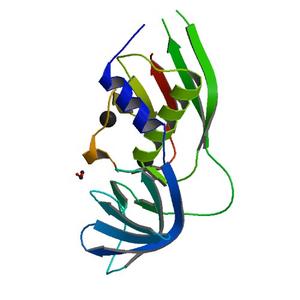

Title Crystal structure of a superantigen-like protein (SAV0433) from Staphylococcus aureus MU50 at 2.05 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.19 / 0.24
Unit cell edges [Å] 50.16 x 90.80 x 109.13
Unit cell angles [°] 90.0, 90.0, 90.0

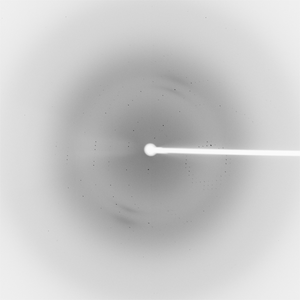

Dataset 157538_1_E1_####.mccd details

Number of frames 200 (1 - 200)
Distance [mm] 300.0
Oscillation width [°] 0.50
Phi [°] 280.0
Wavelength [Å] 0.97941
Experiment Date 2010-06-10
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

Dataset 157538_1_E2_####.mccd details

Number of frames 200 (1 - 200)
Distance [mm] 300.0
Oscillation width [°] 0.50
Phi [°] 280.0
Wavelength [Å] 0.91837
Experiment Date 2010-06-10
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

Dataset 157538_2_####.mccd details

Number of frames 200 (1 - 200)
Distance [mm] 300.0
Oscillation width [°] 0.50
Phi [°] 280.0
Wavelength [Å] 0.97895
Experiment Date 2010-06-11
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
