Diffraction project datasets SP17980C_4zys

  • Method: MAD
  • Resolution: 2.25 Å
  • Space group: P 21 21 21
Download all images (6.6 GB)

PDB website for 4ZYS
PDB validation report for 4ZYS

doi:10.18430/M3P305

Project details

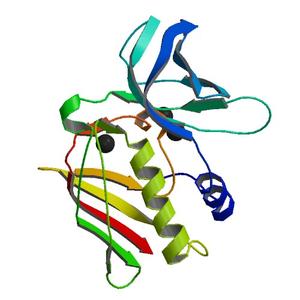

Title Crystal structure of an exotoxin 6 (SAV0422) from Staphylococcus aureus subsp. aureus Mu50 at 2.25 A resolution
Authors JOINT CENTER FOR STRUCTURAL GENOMICS (JCSG)
Bioentity None
R / Rfree 0.19 / 0.24
Unit cell edges [Å] 63.12 x 64.02 x 98.98
Unit cell angles [°] 90.0, 90.0, 90.0

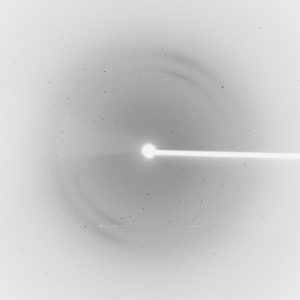

Dataset 209910_1_E1_#####.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 380.0
Oscillation width [°] 0.50
Phi [°] 166.0
Wavelength [Å] 0.97937
Experiment Date 2015-02-03
Equipment BL14-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

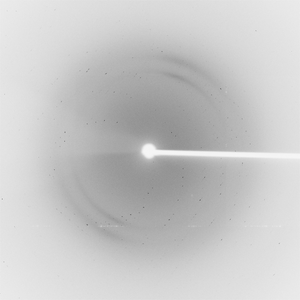

Dataset 209910_1_E2_#####.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 380.0
Oscillation width [°] 0.50
Phi [°] 166.0
Wavelength [Å] 0.95369
Experiment Date 2015-02-03
Equipment BL14-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

Dataset 209910_2_#####.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 380.0
Oscillation width [°] 0.50
Phi [°] 166.0
Wavelength [Å] 0.97913
Experiment Date 2015-02-03
Equipment BL14-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
