Diffraction project datasets SP17906A_4r1k

  • Method: MAD
  • Resolution: 2.56 Å
  • Space group: C 1 2 1
Download all images (4.3 GB)

PDB website for 4R1K
PDB validation report for 4R1K

doi:10.18430/M34R1K

Project details

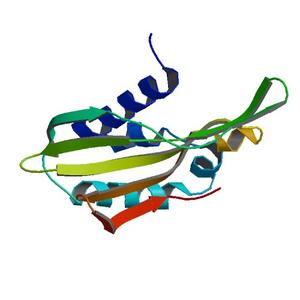

Title Crystal structure of a NTF2-like protein (EUBSIR_01394) from Eubacterium siraeum DSM 15702 at 2.56 A resolution
Authors JOINT CENTER FOR STRUCTURAL GENOMICS (JCSG)
Bioentity None
R / Rfree 0.25 / 0.30
Unit cell edges [Å] 105.65 x 59.32 x 58.41
Unit cell angles [°] 90.0, 101.4, 90.0

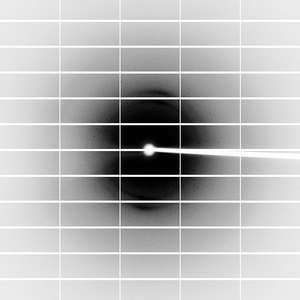

Dataset 205979_1_E1_#####.cbf details

Number of frames 400 (1 - 400)
Distance [mm] 299.9
Oscillation width [°] 0.50
Phi [°] 200.0
Wavelength [Å] 0.97939
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

Dataset 205979_1_E2_#####.cbf details

Number of frames 400 (1 - 400)
Distance [mm] 299.9
Oscillation width [°] 0.50
Phi [°] 200.0
Wavelength [Å] 0.91837
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

Dataset 205979_2_#####.cbf details

Number of frames 400 (1 - 400)
Distance [mm] 299.9
Oscillation width [°] 0.50
Phi [°] 200.0
Wavelength [Å] 0.97882
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
