Diffraction project datasets SP17865A_4pw1

  • Method: MAD
  • Resolution: 2.1 Å
  • Space group: P 41 21 2
Download all images (4.9 GB)

PDB website for 4PW1
PDB validation report for 4PW1

doi:10.18430/M34PW1

Project details

Title Crystal structure of a protein with unknown function (CLOLEP_02462) from Clostridium leptum DSM 753 at 2.10 A resolution
Authors JOINT CENTER FOR STRUCTURAL GENOMICS (JCSG)
Bioentity None
R / Rfree 0.16 / 0.20
Unit cell edges [Å] 72.10 x 72.10 x 214.26
Unit cell angles [°] 90.0, 90.0, 90.0

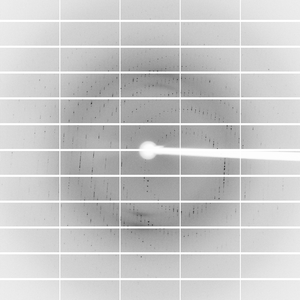

Dataset 200893_1_E1_#####.cbf details

Number of frames 450 (1 - 450)
Distance [mm] 400.0
Oscillation width [°] 0.20
Phi [°] 90.0
Wavelength [Å] 0.97959
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

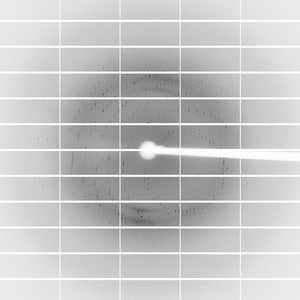

Dataset 200893_1_E2_#####.cbf details

Number of frames 450 (1 - 450)
Distance [mm] 400.0
Oscillation width [°] 0.20
Phi [°] 90.0
Wavelength [Å] 0.91837
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

Dataset 200893_2_#####.cbf details

Number of frames 450 (1 - 450)
Distance [mm] 400.0
Oscillation width [°] 0.20
Phi [°] 90.0
Wavelength [Å] 0.97903
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
