Diffraction project datasets SP17835A_4gl6

  • Method: MAD
  • Resolution: 2.55 Å
  • Space group: C 1 2 1
Download all images (7.7 GB)

PDB website for 4GL6
PDB validation report for 4GL6

doi:10.18430/M34GL6

Project details

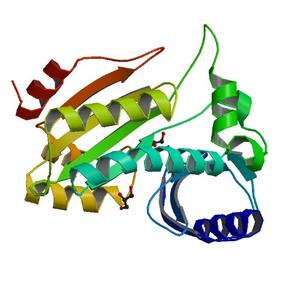

Title Crystal structure of a DUF5037 family protein (RUMGNA_01148) from Ruminococcus gnavus ATCC 29149 at 2.55 A resolution
Authors Joint center for structural genomics (JCSG)
Bioentity None
R / Rfree 0.19 / 0.22
Unit cell edges [Å] 148.65 x 84.14 x 53.03
Unit cell angles [°] 90.0, 98.3, 90.0

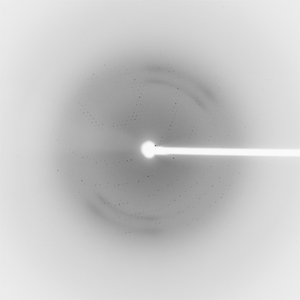

Dataset 181388_1_E1_#####.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 325.0
Oscillation width [°] 1.00
Phi [°] 109.0
Wavelength [Å] 0.97922
Experiment Date 2012-05-03
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

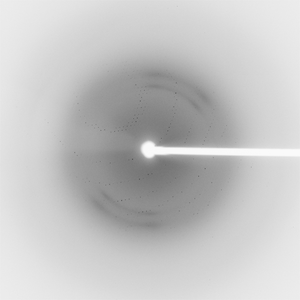

Dataset 181388_1_E2_#####.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 325.0
Oscillation width [°] 1.00
Phi [°] 109.0
Wavelength [Å] 0.91162
Experiment Date 2012-05-03
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

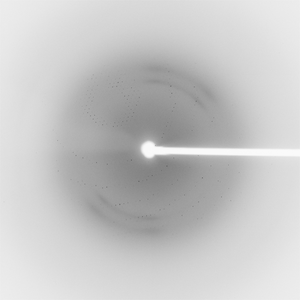

Dataset 181388_2_#####.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 325.0
Oscillation width [°] 1.00
Phi [°] 109.0
Wavelength [Å] 0.97900
Experiment Date 2012-05-03
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
