Diffraction project datasets SP17732C_4nzk

  • Method: MAD
  • Resolution: 1.49 Å
  • Space group: P 61 2 2
Download all images (5.3 GB)

PDB website for 4NZK
PDB validation report for 4NZK

doi:10.18430/M34NZK

Project details

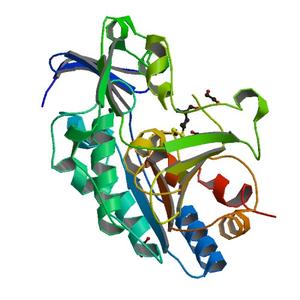

Title Crystal structure of a DHHW family protein (EUBSIR_00411) from Eubacterium siraeum DSM 15702 at 1.49 A resolution
Authors JOINT CENTER FOR STRUCTURAL GENOMICS (JCSG)
Bioentity None
R / Rfree 0.13 / 0.16
Unit cell edges [Å] 102.12 x 102.12 x 123.31
Unit cell angles [°] 90.0, 90.0, 120.0

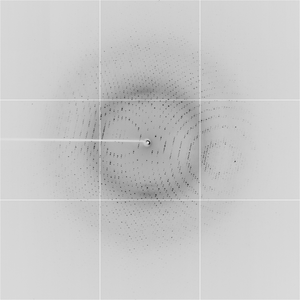

Dataset 199437_1_E1_###.img details

Number of frames 300 (1 - 300)
Distance [mm] 200.0
Oscillation width [°] 0.30
Phi [°] 295.0
Wavelength [Å] 0.97935
Experiment Date 2013-10-17
Equipment 8.2.1 at ALS (Advanced Light Source)

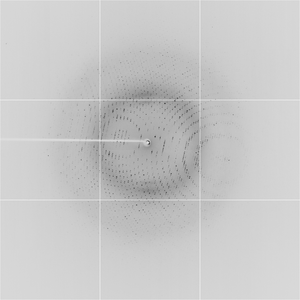

Dataset 199437_1_E2_###.img details

Number of frames 300 (1 - 300)
Distance [mm] 200.0
Oscillation width [°] 0.30
Phi [°] 295.0
Wavelength [Å] 0.91840
Experiment Date 2013-10-17
Equipment 8.2.1 at ALS (Advanced Light Source)

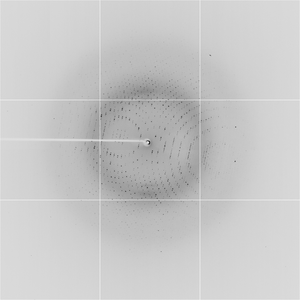

Dataset 199437_2_###.img details

Number of frames 300 (1 - 300)
Distance [mm] 200.0
Oscillation width [°] 0.30
Phi [°] 295.0
Wavelength [Å] 0.97926
Experiment Date 2013-10-17
Equipment 8.2.1 at ALS (Advanced Light Source)
