Diffraction project datasets SP17692A_3sb3

  • Method: MAD
  • Resolution: 1.83 Å
  • Space group: P 4 21 2
Download all images (4.2 GB)

PDB website for 3SB3

doi:10.18430/M33SB3

Project details

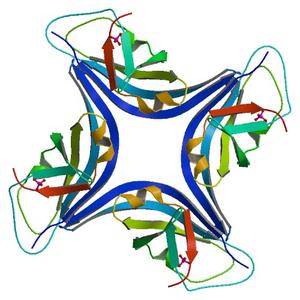

Title Crystal structure of an apag protein (PA1934) from pseudomonas aeruginosa pao1 at 1.83 A resolution
Authors Joint center for structural genomics (JCSG)
R / Rfree 0.19 / 0.22
Unit cell edges [Å] 66.08 x 66.08 x 50.54
Unit cell angles [°] 90.0, 90.0, 90.0

Dataset 154138_1_E1_####.mccd details

Number of frames 100 (1 - 100)
Distance [mm] 210.0
Oscillation width [°] 1.00
Phi [°] 100.0
Wavelength [Å] 0.97936
Experiment Date 2010-05-12
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

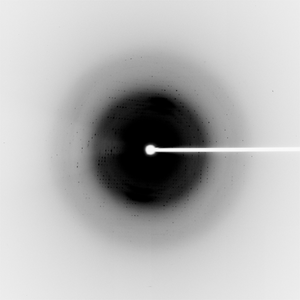

Dataset 154138_1_E2_####.mccd details

Number of frames 100 (1 - 100)
Distance [mm] 210.0
Oscillation width [°] 1.00
Phi [°] 100.0
Wavelength [Å] 0.91837
Experiment Date 2010-05-12
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

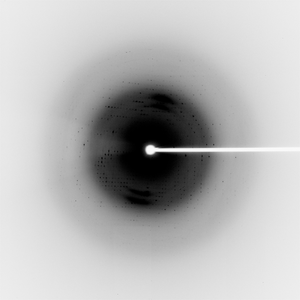

Dataset 154138_2_####.mccd details

Number of frames 100 (1 - 100)
Distance [mm] 210.0
Oscillation width [°] 1.00
Phi [°] 100.0
Wavelength [Å] 0.97920
Experiment Date 2010-05-12
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
