Diffraction project datasets SP17692A_3nrf

  • Method: MAD
  • Resolution: 1.5 Å
  • Space group: C 2 2 21
Download all images (4.5 GB)

PDB website for 3NRF
PDB validation report for 3NRF

doi:10.18430/M33NRF

Project details

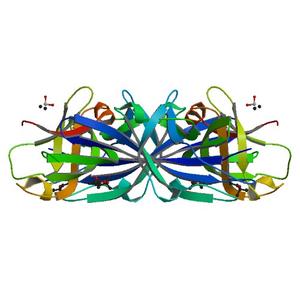

Title Crystal structure of an apag protein (PA1934) from pseudomonas aeruginosa pao1 at 1.50 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.18 / 0.22
Unit cell edges [Å] 69.34 x 96.49 x 61.79
Unit cell angles [°] 90.0, 90.0, 90.0

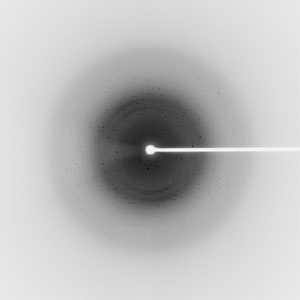

Dataset 154505_1_E1_####.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 200.0
Oscillation width [°] 1.00
Phi [°] 266.0
Wavelength [Å] 0.97936
Experiment Date 2010-05-12
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

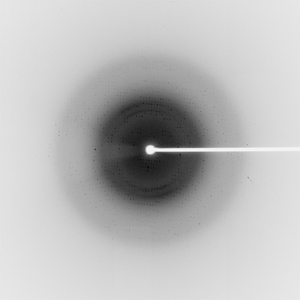

Dataset 154505_1_E2_####.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 200.0
Oscillation width [°] 1.00
Phi [°] 266.0
Wavelength [Å] 0.91837
Experiment Date 2010-05-12
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

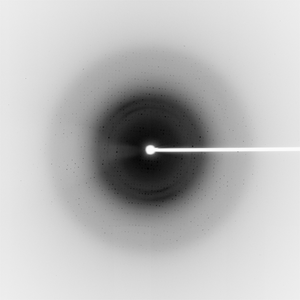

Dataset 154505_2_####.mccd details

Number of frames 90 (1 - 90)
Distance [mm] 200.0
Oscillation width [°] 1.00
Phi [°] 266.0
Wavelength [Å] 0.97922
Experiment Date 2010-05-12
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

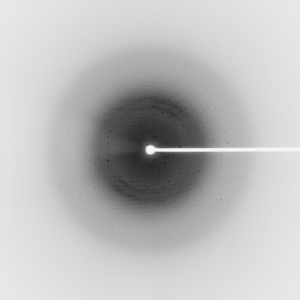

Dataset 154505_3_E1_####.mccd details

Number of frames 24 (1 - 24)
Distance [mm] 200.0
Oscillation width [°] 1.00
Phi [°] 356.0
Wavelength [Å] 0.97936
Experiment Date 2010-05-12
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

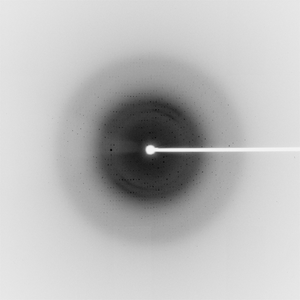

Dataset 154505_3_E2_####.mccd details

Number of frames 24 (1 - 24)
Distance [mm] 200.0
Oscillation width [°] 1.00
Phi [°] 356.0
Wavelength [Å] 0.91162
Experiment Date 2010-05-12
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

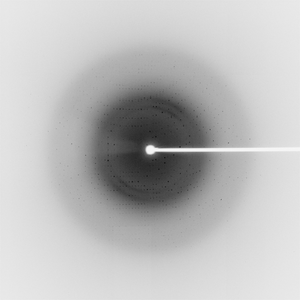

Dataset 154505_4_####.mccd details

Number of frames 30 (1 - 30)
Distance [mm] 200.0
Oscillation width [°] 1.00
Phi [°] 356.0
Wavelength [Å] 0.97922
Experiment Date 2010-05-12
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
