Diffraction project datasets SP17552A_3npp

  • Method: SAD
  • Resolution: 2.15 Å
  • Space group: P 3 2 1
Download all images (3.1 GB)

PDB website for 3NPP

doi:10.18430/M33NPP

Project details

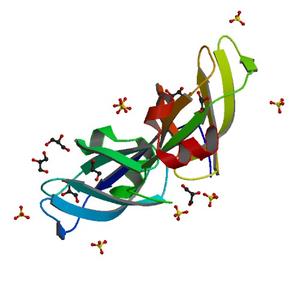

Title Crystal structure of a Pfam DUF1093 family protein (BSU39620) from Bacillus subtilis at 2.15 A resolution
Authors Joint Center for Structural Genomics (JCSG)
R / Rfree 0.18 / 0.22
Unit cell edges [Å] 91.54 x 91.54 x 59.13
Unit cell angles [°] 90.0, 90.0, 120.0

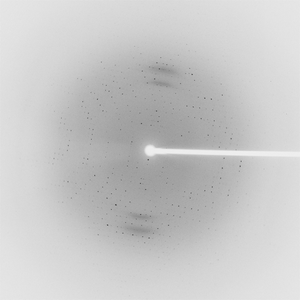

Dataset 151666_1_E1_####.mccd details

Number of frames 100 (1 - 100)
Distance [mm] 320.0
Oscillation width [°] 1.00
Phi [°] 170.0
Wavelength [Å] 0.97944
Experiment Date 2010-04-08
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

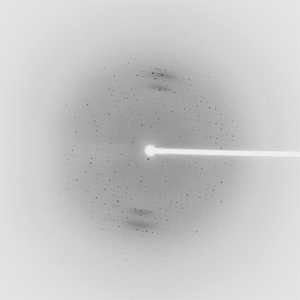

Dataset 151666_1_E2_####.mccd details

Number of frames 100 (1 - 100)
Distance [mm] 320.0
Oscillation width [°] 1.00
Phi [°] 170.0
Wavelength [Å] 0.91837
Experiment Date 2010-04-08
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

Dataset 151666_2_####.mccd details

Number of frames 100 (1 - 100)
Distance [mm] 320.0
Oscillation width [°] 1.00
Phi [°] 170.0
Wavelength [Å] 0.97913
Experiment Date 2010-04-08
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
