Diffraction project datasets SP17517A_4h08

  • Method: MAD
  • Resolution: 1.8 Å
  • Space group: P 31 2 1
Download all images (5.8 GB)

PDB website for 4H08
PDB validation report for 4H08

doi:10.18430/M34H08

Project details

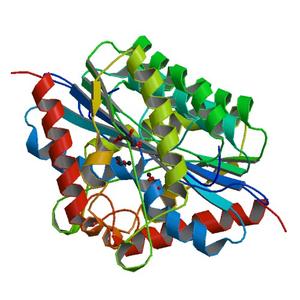

Title Crystal structure of a putative hydrolase (BT3161) from Bacteroides thetaiotaomicron VPI-5482 at 1.80 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.15 / 0.19
Unit cell edges [Å] 77.89 x 77.89 x 64.09
Unit cell angles [°] 90.0, 90.0, 120.0

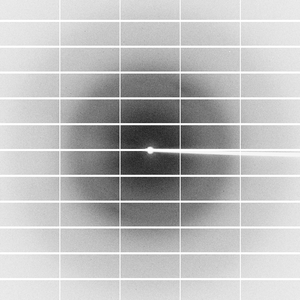

Dataset 176318_1_E1_#####.cbf details

Number of frames 800 (1 - 800)
Distance [mm] 360.0
Oscillation width [°] 0.15
Phi [°] 100.0
Wavelength [Å] 0.97975
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

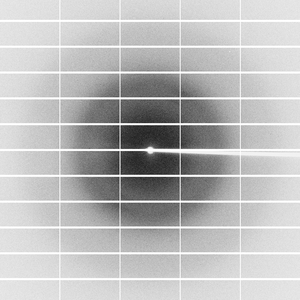

Dataset 176318_1_E2_#####.cbf details

Number of frames 900 (1 - 900)
Distance [mm] 360.0
Oscillation width [°] 0.15
Phi [°] 100.0
Wavelength [Å] 0.91162
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

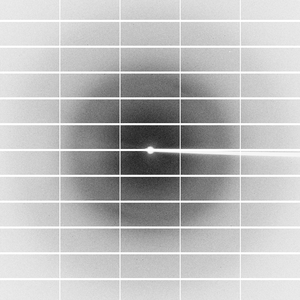

Dataset 176318_2_#####.cbf details

Number of frames 400 (1 - 400)
Distance [mm] 360.0
Oscillation width [°] 0.15
Phi [°] 110.0
Wavelength [Å] 0.97916
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
