Diffraction project datasets SP17476A_4qy7

  • Method: MAD
  • Resolution: 1.55 Å
  • Space group: P 21 21 21
Download all images (7.9 GB)

PDB website for 4QY7
PDB validation report for 4QY7

doi:10.18430/M34QY7

Project details

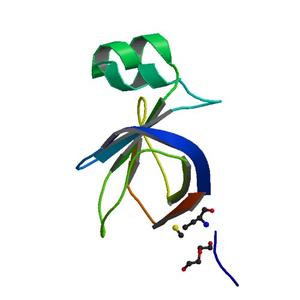

Title Crystal structure of a yobA protein (BSU18810) from Bacillus subtilis subsp. subtilis str. 168 at 1.55 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.19 / 0.22
Unit cell edges [Å] 27.56 x 37.99 x 81.25
Unit cell angles [°] 90.0, 90.0, 90.0

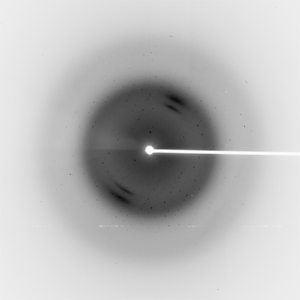

Dataset 206237_1_E1_#####.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 225.0
Oscillation width [°] 0.50
Phi [°] 246.0
Wavelength [Å] 0.97937
Experiment Date 2014-06-11
Equipment BL14-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

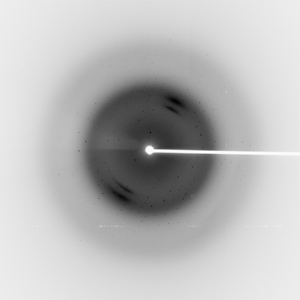

Dataset 206237_1_E2_#####.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 225.0
Oscillation width [°] 0.50
Phi [°] 246.0
Wavelength [Å] 0.95369
Experiment Date 2014-06-11
Equipment BL14-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

Dataset 206237_2_#####.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 225.0
Oscillation width [°] 0.50
Phi [°] 246.0
Wavelength [Å] 0.97922
Experiment Date 2014-06-11
Equipment BL14-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
