Diffraction project datasets SP17473A_4ygt

  • Method: MAD
  • Resolution: 2.13 Å
  • Space group: P 61
Download all images (3.6 GB)

PDB website for 4YGT
PDB validation report for 4YGT

doi:10.18430/M37W2T

Project details

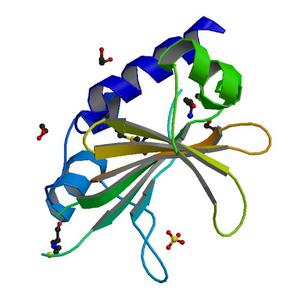

Title Crystal structure of a DUF4309 family protein (YjgB) from Bacillus subtilis subsp. subtilis str. 168 at 2.13 A resolution
Authors JOINT CENTER FOR STRUCTURAL GENOMICS (JCSG)
Bioentity None
R / Rfree 0.19 / 0.23
Unit cell edges [Å] 90.83 x 90.83 x 41.90
Unit cell angles [°] 90.0, 90.0, 120.0

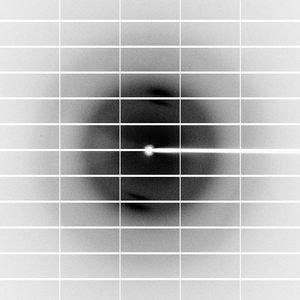

Dataset 206774_1_E1_#####.cbf details

Number of frames 380 (1 - 380)
Distance [mm] 300.0
Oscillation width [°] 0.50
Phi [°] 140.0
Wavelength [Å] 0.97930
Experiment Date 2014-07-28
Equipment BL12-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

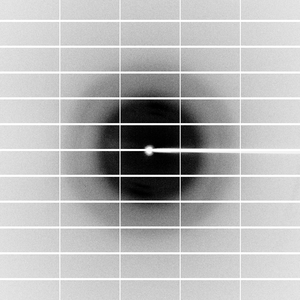

Dataset 206774_1_E2_#####.cbf details

Number of frames 380 (1 - 380)
Distance [mm] 300.0
Oscillation width [°] 0.50
Phi [°] 140.0
Wavelength [Å] 0.75140
Experiment Date 2014-07-28
Equipment BL12-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

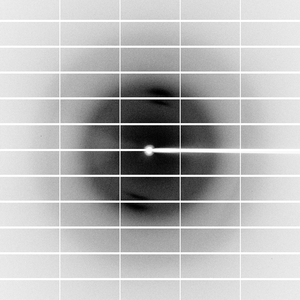

Dataset 206774_2_#####.cbf details

Number of frames 440 (1 - 440)
Distance [mm] 300.0
Oscillation width [°] 0.50
Phi [°] 140.0
Wavelength [Å] 0.97910
Experiment Date 2014-07-28
Equipment BL12-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
