Diffraction project datasets SP17443B_4mjg

  • Method: MAD
  • Resolution: 2.65 Å
  • Space group: P 32 2 1
Download all images (1.3 GB)

PDB website for 4MJG
PDB validation report for 4MJG

doi:10.18430/M34MJG

Project details

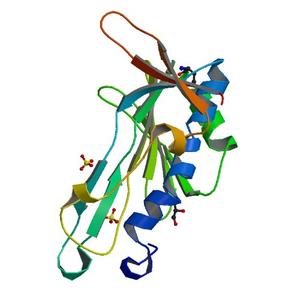

Title Crystal structure of a DUF4853 family protein (ACTODO_00621) from Actinomyces odontolyticus ATCC 17982 at 2.65 A resolution
Authors JOINT CENTER FOR STRUCTURAL GENOMICS (JCSG)
Bioentity None
R / Rfree 0.23 / 0.26
Unit cell edges [Å] 97.08 x 97.08 x 105.04
Unit cell angles [°] 90.0, 90.0, 120.0

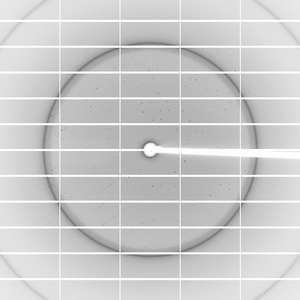

Dataset 195706_1_E1_#####.cbf details

Number of frames 120 (1 - 120)
Distance [mm] 550.0
Oscillation width [°] 0.50
Phi [°] 235.0
Wavelength [Å] 0.97941
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

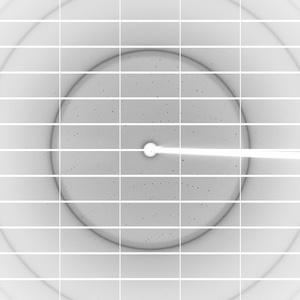

Dataset 195706_1_E2_#####.cbf details

Number of frames 120 (1 - 120)
Distance [mm] 550.0
Oscillation width [°] 0.50
Phi [°] 235.0
Wavelength [Å] 0.91837
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

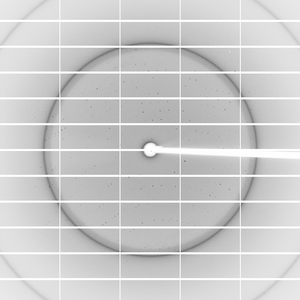

Dataset 195706_2_#####.cbf details

Number of frames 90 (1 - 90)
Distance [mm] 550.0
Oscillation width [°] 0.50
Phi [°] 235.0
Wavelength [Å] 0.97868
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
