Diffraction project datasets SP17422A_3up9

  • Method: Molecular Replacement
  • Resolution: 2.35 Å
  • Space group: I 41
Download all images (1.4 GB)

PDB website for 3UP9
PDB validation report for 3UP9

doi:10.18430/M33UP9

Project details

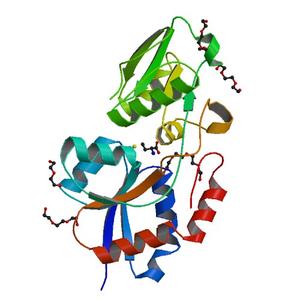

Title Crystal structure of a putative lipoprotein (ACTODO_00931) from Actinomyces odontolyticus ATCC 17982 at 2.35 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.16 / 0.21
Unit cell edges [Å] 95.92 x 95.92 x 93.78
Unit cell angles [°] 90.0, 90.0, 90.0

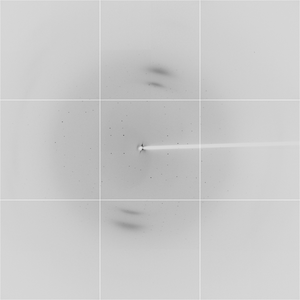

Dataset 169886_1_E1_###.img details

Number of frames 120 (1 - 120)
Distance [mm] 300.0
Oscillation width [°] 1.00
Phi [°] 37.0
Wavelength [Å] 0.97960
Experiment Date 2011-09-09
Equipment 8.2.2 at ALS (Advanced Light Source)

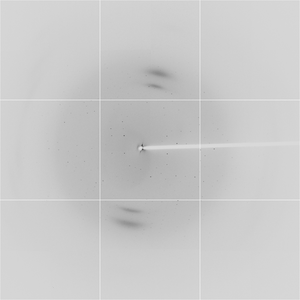

Dataset 169886_1_E2_###.img details

Number of frames 120 (1 - 120)
Distance [mm] 300.0
Oscillation width [°] 1.00
Phi [°] 37.0
Wavelength [Å] 0.95370
Experiment Date 2011-09-09
Equipment 8.2.2 at ALS (Advanced Light Source)
