Diffraction project datasets SP17422AK_4k3f

  • Method: MAD
  • Resolution: 1.6 Å
  • Space group: P 21 21 2
Download all images (3.5 GB)

PDB website for 4K3F
PDB validation report for 4K3F

doi:10.18430/M34K3F

Project details

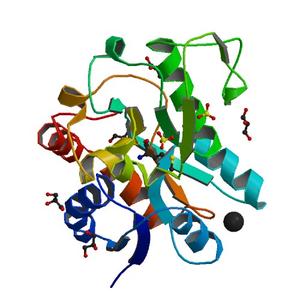

Title Crystal structure of a putative TonB-dependent receptor (PA5505) from Pseudomonas aeruginosa PAO1 at 1.60 A resolution
Authors JOINT CENTER FOR STRUCTURAL GENOMICS (JCSG)
Bioentity None
R / Rfree 0.15 / 0.19
Unit cell edges [Å] 99.58 x 40.51 x 60.81
Unit cell angles [°] 90.0, 90.0, 90.0

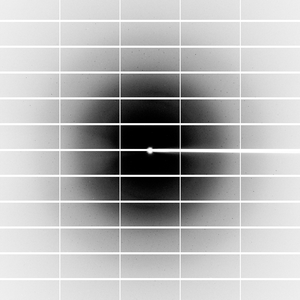

Dataset 194447_1_E1_#####.cbf details

Number of frames 300 (1 - 300)
Distance [mm] 300.0
Oscillation width [°] 0.30
Phi [°] 95.0
Wavelength [Å] 0.97940
Experiment Date 2013-04-01
Equipment BL12-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

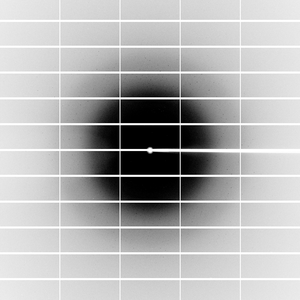

Dataset 194447_1_E2_#####.cbf details

Number of frames 300 (1 - 300)
Distance [mm] 300.0
Oscillation width [°] 0.30
Phi [°] 95.0
Wavelength [Å] 0.82650
Experiment Date 2013-04-01
Equipment BL12-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

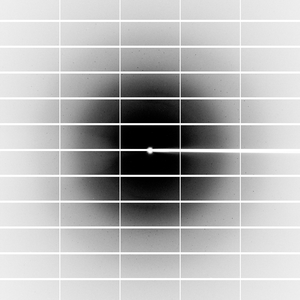

Dataset 194447_2_#####.cbf details

Number of frames 334 (1 - 334)
Distance [mm] 300.0
Oscillation width [°] 0.30
Phi [°] 95.0
Wavelength [Å] 0.97920
Experiment Date 2013-04-01
Equipment BL12-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
