Diffraction project datasets SP17422AB_4ef2

  • Method: MAD
  • Resolution: 2.1 Å
  • Space group: P 21 21 21
Download all images (5.0 GB)

PDB website for 4EF2
PDB validation report for 4EF2

doi:10.18430/M34EF2

Project details

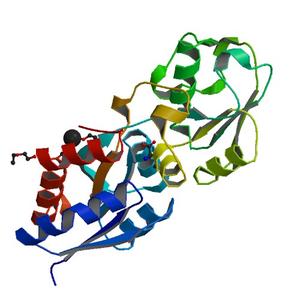

Title Crystal structure of a pheromone cOB1 precursor/lipoprotein, YaeC family (EF2496) from Enterococcus faecalis V583 at 2.10 A resolution
Authors Joint center for structural genomics (JCSG)
Bioentity None
R / Rfree 0.19 / 0.23
Unit cell edges [Å] 46.22 x 75.69 x 143.82
Unit cell angles [°] 90.0, 90.0, 90.0

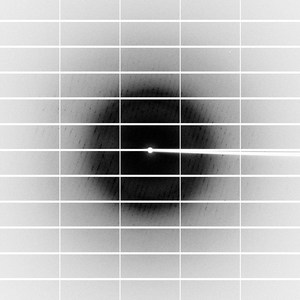

Dataset 176811_1_E1_#####.cbf details

Number of frames 500 (1 - 500)
Distance [mm] 300.0
Oscillation width [°] 0.20
Phi [°] 200.0
Wavelength [Å] 0.97966
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

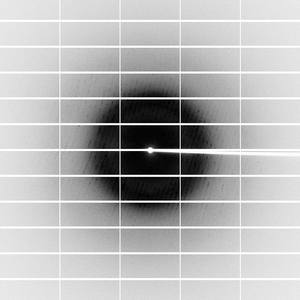

Dataset 176811_1_E2_#####.cbf details

Number of frames 500 (1 - 500)
Distance [mm] 300.0
Oscillation width [°] 0.20
Phi [°] 200.0
Wavelength [Å] 0.91837
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

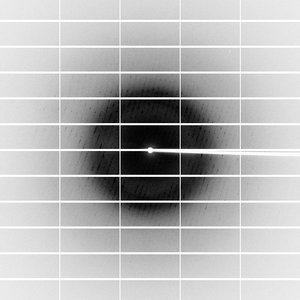

Dataset 176811_2_#####.cbf details

Number of frames 500 (1 - 500)
Distance [mm] 300.0
Oscillation width [°] 0.20
Phi [°] 200.0
Wavelength [Å] 0.97901
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
