Diffraction project datasets SP17326A_4l3u

  • Method: MAD
  • Resolution: 1.95 Å
  • Space group: I 41
Download all images (4.3 GB)

PDB website for 4L3U
PDB validation report for 4L3U

doi:10.18430/M34L3U

Project details

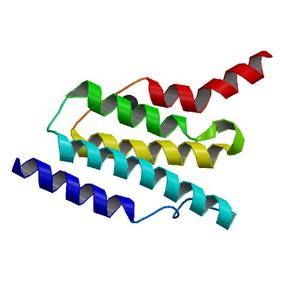

Title Crystal structure of a DUF3571 family protein (ABAYE3784) from Acinetobacter baumannii AYE at 1.95 A resolution
Authors JOINT CENTER FOR STRUCTURAL GENOMICS (JCSG)
Bioentity None
R / Rfree 0.17 / 0.21
Unit cell edges [Å] 61.74 x 61.74 x 94.89
Unit cell angles [°] 90.0, 90.0, 90.0

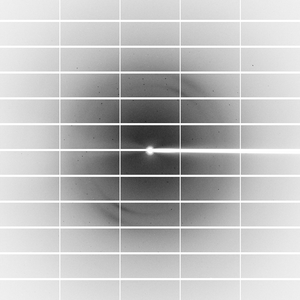

Dataset 194379_1_E1_#####.cbf details

Number of frames 360 (1 - 360)
Distance [mm] 400.0
Oscillation width [°] 0.25
Phi [°] 112.0
Wavelength [Å] 0.97920
Experiment Date 2013-04-01
Equipment BL12-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

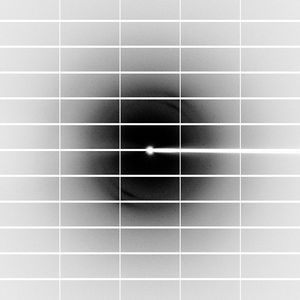

Dataset 194379_1_E2_#####.cbf details

Number of frames 360 (1 - 360)
Distance [mm] 400.0
Oscillation width [°] 0.25
Phi [°] 112.0
Wavelength [Å] 0.75140
Experiment Date 2013-04-01
Equipment BL12-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

Dataset 194379_2_#####.cbf details

Number of frames 360 (1 - 360)
Distance [mm] 400.0
Oscillation width [°] 0.25
Phi [°] 112.0
Wavelength [Å] 0.97900
Experiment Date 2013-04-01
Equipment BL12-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
