Diffraction project datasets SP17277B_4i8i

  • Method: MAD
  • Resolution: 1.5 Å
  • Space group: I 2 2 2
Download all images (9.7 GB)

PDB website for 4I8I
PDB validation report for 4I8I

doi:10.18430/M34I8I

Project details

Title Crystal structure of a DUF4886 family protein (BACUNI_01406) from Bacteroides uniformis ATCC 8492 at 1.50 A resolution
Authors JOINT CENTER FOR STRUCTURAL GENOMICS (JCSG)
Bioentity None
R / Rfree 0.15 / 0.18
Unit cell edges [Å] 69.69 x 82.43 x 90.11
Unit cell angles [°] 90.0, 90.0, 90.0

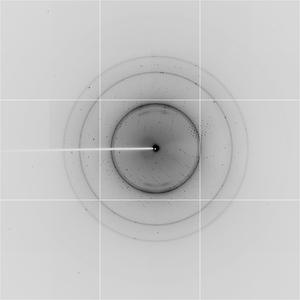

Dataset 187784_1_E1_###.img details

Number of frames 180 (1 - 180)
Distance [mm] 170.0
Oscillation width [°] 1.00
Phi [°] 90.0
Wavelength [Å] 0.97926
Experiment Date 2012-10-18
Equipment 8.2.2 at ALS (Advanced Light Source)

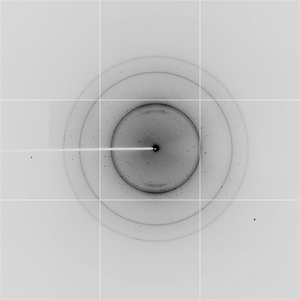

Dataset 187784_1_E2_###.img details

Number of frames 180 (1 - 180)
Distance [mm] 170.0
Oscillation width [°] 1.00
Phi [°] 109.0
Wavelength [Å] 0.97926
Experiment Date 2012-10-18
Equipment 8.2.2 at ALS (Advanced Light Source)

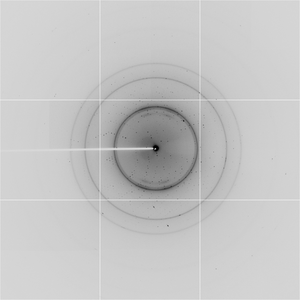

Dataset 187784_2_###.img details

Number of frames 180 (1 - 180)
Distance [mm] 170.0
Oscillation width [°] 1.00
Phi [°] 259.0
Wavelength [Å] 0.91840
Experiment Date 2012-10-18
Equipment 8.2.2 at ALS (Advanced Light Source)
