Diffraction project datasets SP17169A_3up6
- Method: MAD
- Resolution: 2.8 Å
- Space group: P 21 21 21
PDB website for 3UP6
PDB validation report for 3UP6
doi:10.18430/M33UP6
Project details

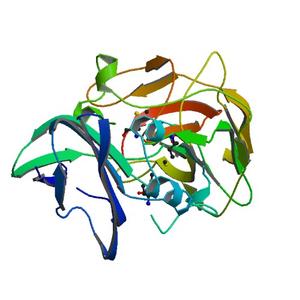

| Title | Crystal structure of a putative cell adhesion protein (BACOVA_04078) from Bacteroides ovatus ATCC 8483 at 2.80 A resolution |
| Authors | JOINT CENTER FOR STRUCTURAL GENOMICS (JCSG) |
| Bioentity | None |
| R / Rfree | 0.20 / 0.25 |
| Unit cell edges [Å] | 78.04 x 91.14 x 106.36 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

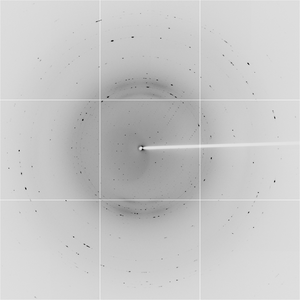

Dataset 169874_1_###.img details
| Number of frames | 120 (1 - 120) |
| Distance [mm] | 250.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 244.0 |
| Wavelength [Å] | 0.97930 |
| Experiment Date | 2011-09-08 |
| Equipment | 8.2.2 at ALS (Advanced Light Source) |

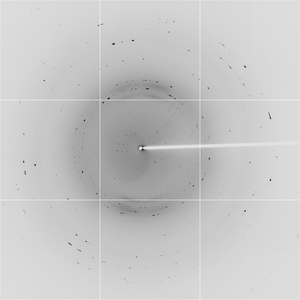

Dataset 169874_2_###.img details
| Number of frames | 90 (1 - 90) |
| Distance [mm] | 250.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 244.0 |
| Wavelength [Å] | 0.95370 |
| Experiment Date | 2011-09-09 |
| Equipment | 8.2.2 at ALS (Advanced Light Source) |
