Diffraction project datasets SP17106A_4pux

  • Method: MAD
  • Resolution: 1.43 Å
  • Space group: C 2 2 2
Download all images (2.0 GB)

PDB website for 4PUX
PDB validation report for 4PUX

doi:10.18430/M34PUX

Project details

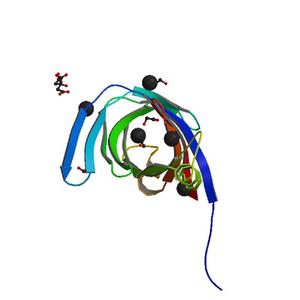

Title Crystal structure of a beta-barrel like protein (ABAYE2633) from Acinetobacter baumannii AYE at 1.43 A resolution
Authors JOINT CENTER FOR STRUCTURAL GENOMICS (JCSG)
Bioentity None
R / Rfree 0.12 / 0.15
Unit cell edges [Å] 61.34 x 99.18 x 48.68
Unit cell angles [°] 90.0, 90.0, 90.0

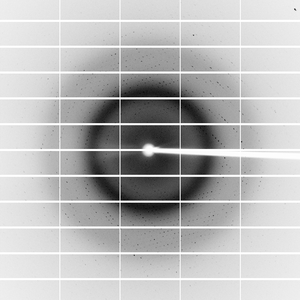

Dataset 200607_1_E1_#####.cbf details

Number of frames 180 (1 - 180)
Distance [mm] 280.0
Oscillation width [°] 0.50
Phi [°] 91.0
Wavelength [Å] 0.97980
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

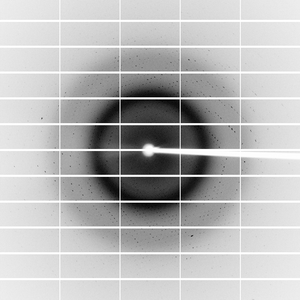

Dataset 200607_1_E2_#####.cbf details

Number of frames 180 (1 - 180)
Distance [mm] 280.0
Oscillation width [°] 0.50
Phi [°] 91.0
Wavelength [Å] 0.91837
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

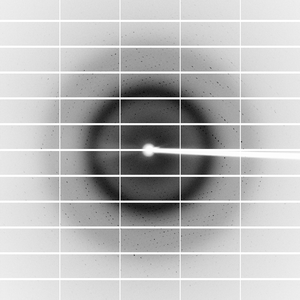

Dataset 200607_2_#####.cbf details

Number of frames 180 (1 - 180)
Distance [mm] 280.0
Oscillation width [°] 0.50
Phi [°] 91.0
Wavelength [Å] 0.97913
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
