Diffraction project datasets SP17053A_4jpq

  • Method: MAD
  • Resolution: 2.7 Å
  • Space group: P 43 21 2
Download all images (2.5 GB)

PDB website for 4JPQ
PDB validation report for 4JPQ

doi:10.18430/M34JPQ

Project details

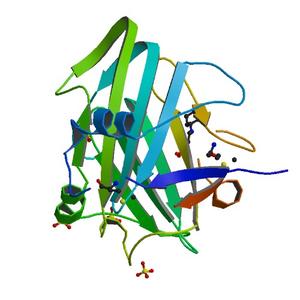

Title Crystal structure of a putative carbohydrate-binding protein (BACUNI_03838) from Bacteroides uniformis ATCC 8492 at 2.70 A resolution
Authors JOINT CENTER FOR STRUCTURAL GENOMICS (JCSG)
Bioentity None
R / Rfree 0.21 / 0.24
Unit cell edges [Å] 96.86 x 96.86 x 137.64
Unit cell angles [°] 90.0, 90.0, 90.0

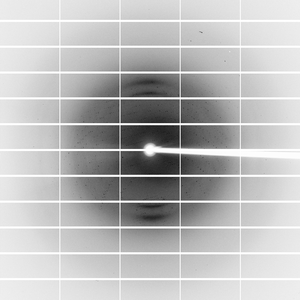

Dataset 186708_1_E1_#####.cbf details

Number of frames 220 (1 - 220)
Distance [mm] 350.0
Oscillation width [°] 0.50
Phi [°] -10.0
Wavelength [Å] 0.97941
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

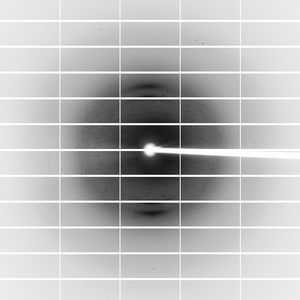

Dataset 186708_1_E2_#####.cbf details

Number of frames 220 (1 - 220)
Distance [mm] 350.0
Oscillation width [°] 0.50
Phi [°] -10.0
Wavelength [Å] 0.91837
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

Dataset 186708_2_#####.cbf details

Number of frames 200 (1 - 200)
Distance [mm] 350.0
Oscillation width [°] 0.50
Phi [°] -10.0
Wavelength [Å] 0.97858
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
