Diffraction project datasets SP17051A_4pxy
- Method: SAD
- Resolution: 1.5 Å
- Space group: H 3
PDB website for 4PXY
doi:10.18430/M34PXY
Project details

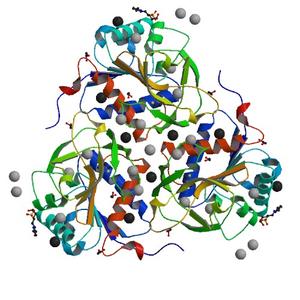

| Title | Crystal structure of a Putative thua-like protein (BACUNI_01602) from Bacteroides uniformis ATCC 8492 at 1.50 A resolution |
| Authors | JOINT CENTER FOR STRUCTURAL GENOMICS (JCSG) |
| R / Rfree | 0.14 / 0.16 |
| Unit cell edges [Å] | 132.67 x 132.67 x 75.48 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |

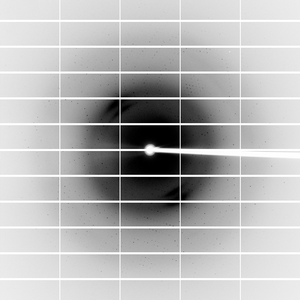

Dataset 192523_1_#####.cbf details
| Number of frames | 250 (1 - 250) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 240.0 |
| Wavelength [Å] | 0.97853 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |
